Vendor: Truechip Solutions Category: UFS Controller

UFS Verification IP

The UFS Verification IP provides an effective & efficient way to verify the components interfacing with bus of an IP or SoC.

Contact Provider Request Datasheet

Overview

The UFS Verification IP provides an effective & efficient way to verify the components interfacing with bus of an IP or SoC. The UFS 4.0, UFS 3.1 and UFS 3.0 VIP is fully compliant with standard UFS 4.0/3.1/3.0 specification from JEDEC. This VIP is a light weight VIP with easy plug-and-play interface so that there is no hit on the design cycle time.

Key features

  • Supports both host and device system.
  • VIP comes with UFS interconnect.
  • VIP’s UFS application layer, transport protocol layer and interconnect layer can also be replaced or use as a BFM standalone.
  • Supports of logical units, as well as well-known logical units.
  • Support SCSI- Command in standard CDB format.
  • Transport protocol service and all types of UPIUs are also support.
  • Supports high speed gears. Gear1, Gear2, Gear3 and Gear4.
  • Supports UFS layering.
    • UFS command set layer(UCS).
    • UFS Transport protocol layer(UTP).
    • UFS Interconnect layer(UIC).
  • Supports MIPI Unipro which is adopted for data link layer.
  • Supports MIPI M-PHY which is adopted for physical layer.
  • Supports Multiple Voltage supply.
  • Supports Out of order.
  • Support advance RPMB.
  • Support Total EHS length as Non-Zero with 32BWords.
  • Support Multi-circular Queue (MCQ) in UFSHCI.
  • Supports Dynamic as well as Static error injection scenarios.
  • On the fly protocol checking using protocol check functions, static and dynamic assertion.
  • Built in coverage analysis.
  • Provides a comprehensive user API (callbacks) in all BFMs.
  • Graphical analyzer to show transactions for easy debugging

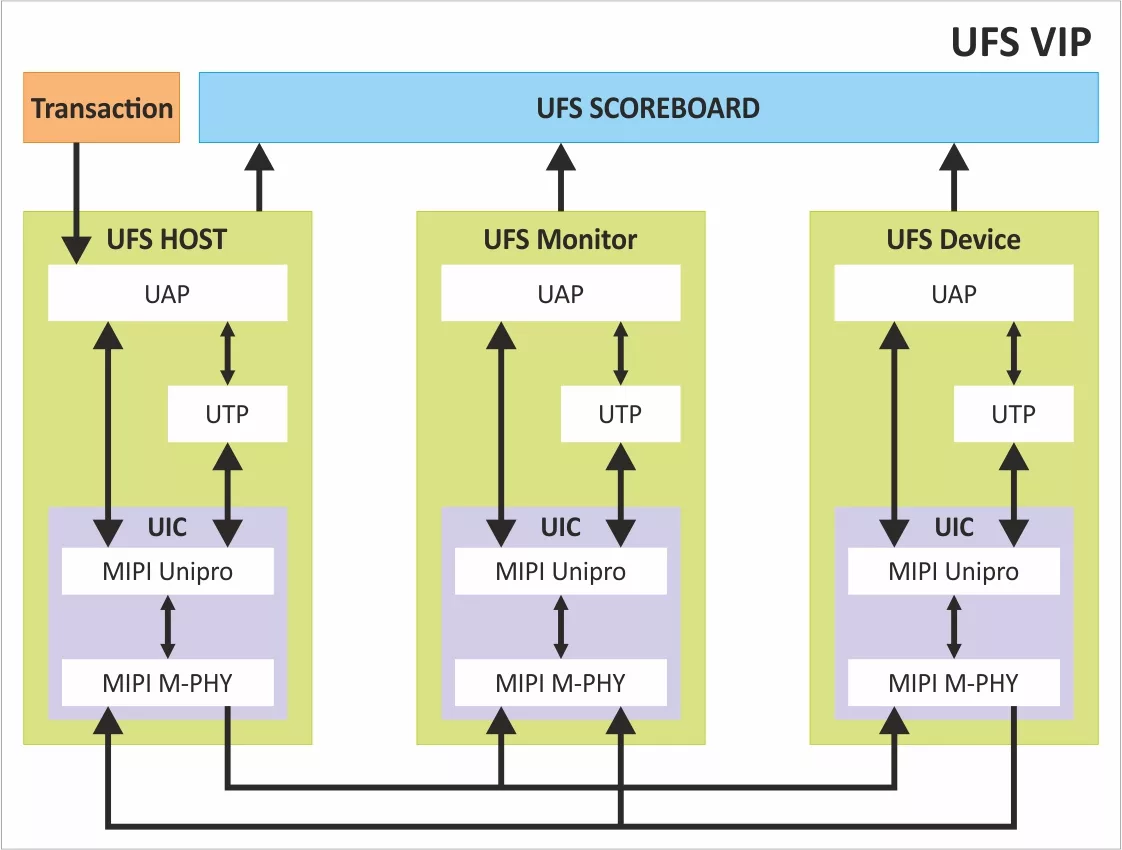

Block Diagram

UFS 4 / 3.1 block diagram

Benefits

  • Available in native System Verilog (UVM/OVM/VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity examples for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solutions and easy integration in IP and SoC environment

What’s Included?

  • UFS Host/Device Agent
  • UFS Monitor and Scoreboard
  • Test Environment & Test Suite:
    • Basic and Directed Protocol Tests
    • Random Tests
    • Error Scenario Tests
    • Assertions & Cover Point Tests
  • Integration Guide, User Manual and Release Notes.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
