Vendor:
ElectraIC
Category:
Random Number Generator
TRNG IP Core
TRNG IP Cores perform true random number generation in compliance with the standards and guidelines defined in 'NIST SP 800-90B'.
Overview
TRNG IP Cores perform true random number generation in compliance with the standards and guidelines defined in 'NIST SP 800-90B'. This standard specifies methods for generating true random numbers suitable for cryptographic applications.
TRNG IP Cores provide high-quality randomness and are designed for secure and reliable entropy generation. VHDL is used as the Hardware Description Language of the IP Core. TRNG IP Core has successfully passed the AIS-31, NIST 800-22 Statistical Test Suite, and NIST 800-90B (IID, Independent and Identically Distributed) tests.
Key features
- is compliant with NIST SP 800-90B.
- supports the Approved Continuous Health Tests specified in NIST 800-90B.
- supports post processing optionally.
- passes AIS-31 tests.
- passes NIST 800-22 Statistical Test Suite tests.
- passes NIST 800-90B IID tests.
- tested and approved by PCI.
- is tested on Z-7015 Z-7020 Z-7045
- has fully stallable input and output interfaces.

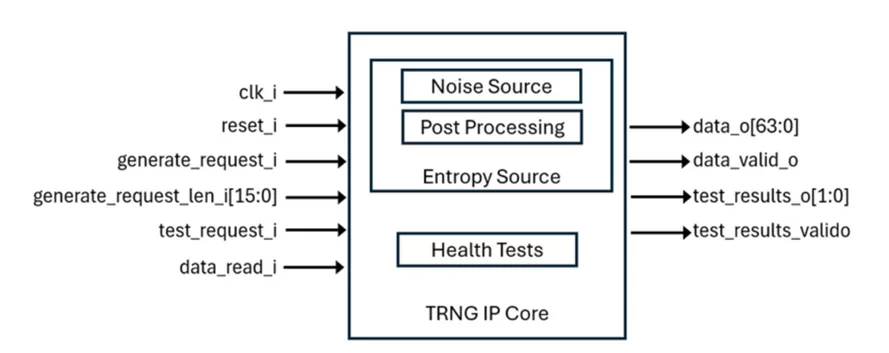

Block Diagram
EIP-14009 block diagram
What’s Included?
- Encrypted Netlist
- Synthesis Scripts
- Comprehensive Documentation
Specifications
Identity
Part Number
EIP-14009
Vendor
ElectraIC
Type
Silicon IP
Security
RNG Type
TRNG
Files
Note: some files may require an NDA depending on provider policy.
Provider
ElectraIC
HQ:
Turkey
ElectraIC provides electronic circuit design and verification services in the field of ASIC, FPGA and embedded systems. The team has the experience of working with global multinational companies. The company has been involved in and continues to take part in many projects, especially in Aerospace and Defense areas, as well as consumer electronics. Functional safety using DO-254, ISO 26262 and EN 50129 are speciality areas. ElectraIC delivers also trainings on ASIC, FPGA and embedded systems.
Contributions ElectraIC can make to your organization:
- Design IP Cores
- Design & Verification Services: ASIC / FPGA and Embedded Systems’ development
- Functional Safety Consultancy & Training Services
- Trainings: Wide range of trainings with more than 150 different trainings
