Tensilica HiFi 3z DSP
Efficiently supports front-end audio processing like beamforming and noise reduction, as well as neural network-assisted speech r…
Overview
Efficiently supports front-end audio processing like beamforming and noise reduction, as well as neural network-assisted speech recognition (ASR) processing.
The Cadence® Tensilica® HiFi 3z DSP raises the performance and energy efficiency over the HiFi 3 DSP when executing complex algorithms. Target applications include mobile, home entertainment, and automotive. As audio requirements for everything from smartphones to home stereo receivers to multi-speaker automotive configurations are being driven by advanced post-processing, the HiFi 3z DSP provides the right level of performance or such tasks while keeping the energy consumption at the lowest level.
|
Feature |
HiFi 3z |
|
|---|---|---|
| VLIW Slots | 3 | |
| Fixed-Point MACs per Cycle | 32x32 | 2 |
| 24x24 | 4 | |
| 32x16 | 4 | |
| 16x16 | up to 8 | |
| Accumulator | 64-bit | |
| VFPU | Integrated 2-way SIMD Vector FPU | |
| ITU Intrinsic Support | Yes | |
| Circular Buffer Support | 1 | |
| Bitstream VLE/VLD | Yes | |
| User-Defined Instructions | Yes | |
Key features
- Flexible VLIW Bundle Instruction sizes
- Up to 2 times more16x16 MACs compared to HiFi 3 DSP
- On average 20% performance boost over HiFi 3 DSP

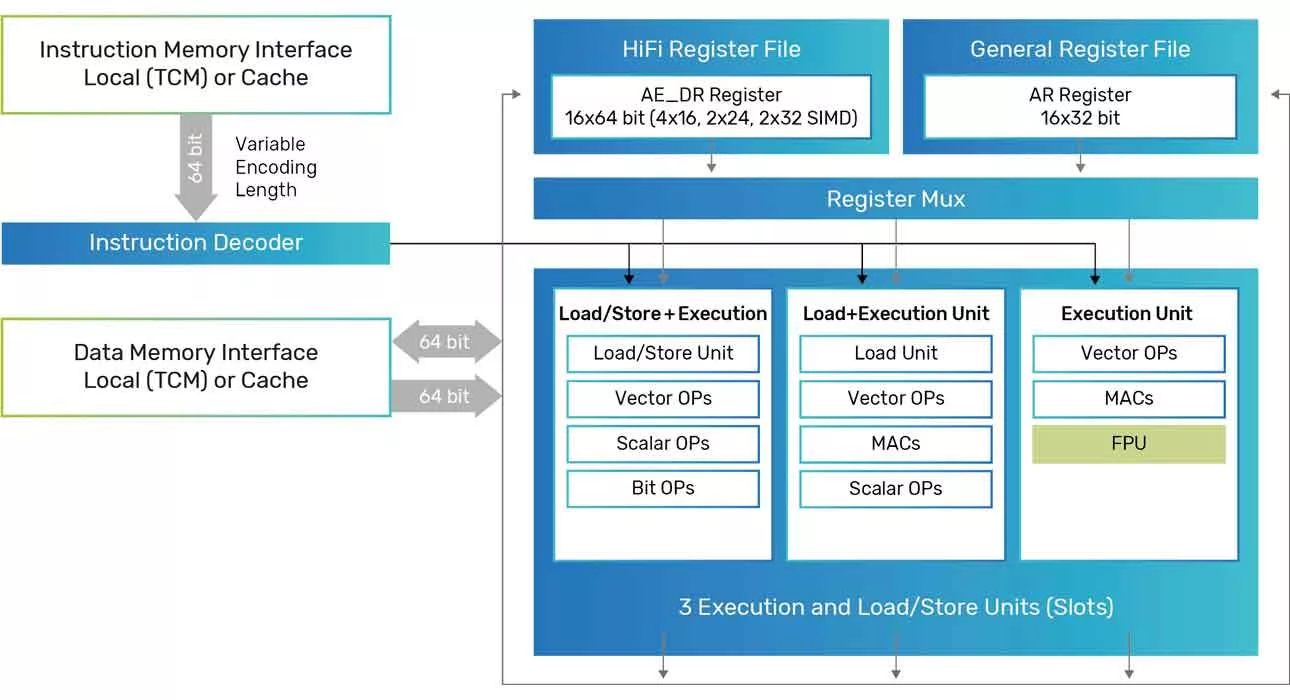

Block Diagram
Click to open fullscreen
Benefits
DSP Performance
Significant (35%) performance boost over HiFi 1s
Energy Efficiency
Balanced area, cycle, and energy efficiency for high-complexity pre- and post-processing algorithms
Codec Performance
Well suited for object-based audio codecs, pre- and post-processing, and running VoLTE (EVS) speech codecs
Applications
Examples include wideband speech codecs for mobile, noise suppression in home and car, and immersive gaming with 32 streams of audio
ISO 26262 Compliant
Certified as ASIL compliant and equipped with both hardware and software safety mechanisms
Applications
- Automotive,
- Communications,
- Consumer Electronics,
- Data Processing,
- Industrial and Medical,
- Military/Civil Aerospace,
- Others
Specifications
Identity
Part Number
HiFi 3z DSP
Vendor
Cadence Design Systems, Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
Cadence Design Systems, Inc.
HQ:
USA
If you want to achieve silicon success, let Cadence help you choose the right IP solution and capture its full value in your SoC design. Cadence® IP solutions offer the combined advantages of a high-quality portfolio, an open platform, a modern IP factory approach to quality, and a strong ecosystem.
Now you can tackle IP-to-SoC development in a system context, focus your internal effort on differentiation, and leverage multi-function cores to do more, faster.
The Cadence IP Portfolio includes silicon-proven Tensilica® IP cores, analog PHY interfaces, standards-based IP cores, verification IP cores, and other solutions as well as customization services for current and emerging industry standards. The Cadence IP Factory provides you with an automated approach to the customization, delivery, and verification of SoC IP. As a result, you can spend more time on differentiation, with the assurance that you'll meet your performance, power, and area requirements.
Choosing Cadence IP enables you to design with confidence because you have more freedom to innovate your SoCs with less risk and faster time to market.
