Generic high-speed FIR Filter with symmetry
FIR filter designed for high sample rate applications with symmetrical coefficients and an even or odd number of taps.
Overview
FIR filter designed for high sample rate applications with symmetrical coefficients and an even or odd number of taps. Features configurable coefficients and data width. Design uses only half the number of multipliers compared to a normal FIR implementation. Matlab®, FDAtool and Simulink® compatible.
Key features
- Synthesizable, Technology independent VHDL IP Core
- Implemented as a systolic array for speed and scalability
- 50% less multipliers than a direct-form FIR implementation
- Support for filters with inverted symmetry such as High-pass, Differentiators and Hilbert Transformers
- Configurable coefficients, data width and number of taps
- Symmetric arithmetic rounding limits DC-bias problems
- Output saturation or wrap modes
- Supports 500 MHz+ sample rates
Block Diagram

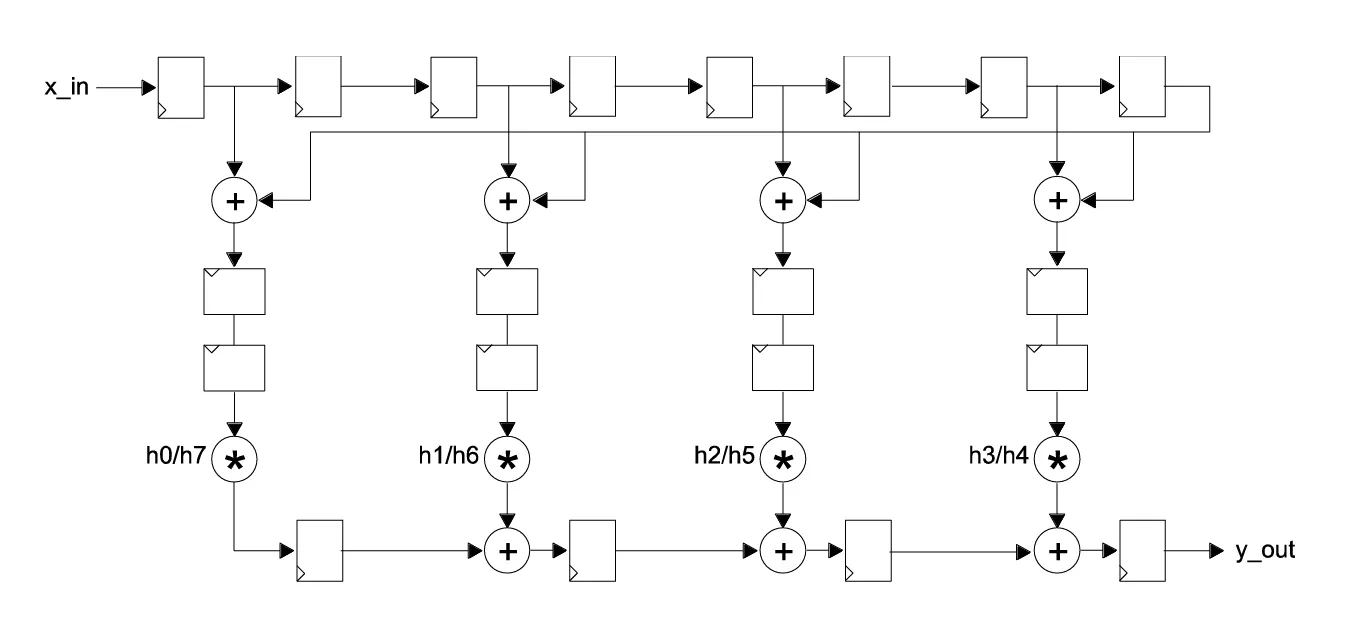

FIR_NTAP_SYM block diagram
Applications
- High-speed filter applications where resources are limited
- General purpose FIR filters with symmetrical coefficients
- Filters that exhibit inverse symmetry in their coefficients such as High-pass, Differentiators and Hilbert transformers
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
FIR_NTAP_SYM
Vendor
Zipcores Electronic Systems Engineering S.L.
Type
Silicon IP
Provider
Zipcores Electronic Systems Engineering S.L.
HQ:
Spain
Zipcores design and sell IP Cores for implementation on all semiconductor devices. Founded in 2008, we are a team of experienced Engineers with a broad knowledge of digital hardware design spanning various fields. Our specific areas of expertise include Digital Video, DSP, Digital Modulation and high-speed interfaces.
We offer a wide range of IP Cores for a variety of applications from basic building blocks to more complex systems. Our cores are supplied as clear readable VHDL or Verilog source-code and are synthesizable across multiple technologies - whether it be FPGA, ASIC or SoC.
