SPI to AMBA AHB Master Bridge

The Veriest SPI to AMBA AHB Master Bridge Design IP offers a simple solution to provide "backdoor" access from external SPI maste…

Overview

The Veriest SPI to AMBA AHB Master Bridge Design IP offers a simple solution to provide "backdoor" access from external SPI master devices to the embedded AMBA AHB bus. The SPI to AMBA AHB Bridge utilizes a simple but effective protocol for reads and writes over the chip-embedded AMBA AHB. The SPI transactions are protected in both directions by a CRC checksum field The external SPI device can be a CPU such as a Tegra, OMAP or other similar device. Driver development for such devices to support the Veriest SPI to AMBA AHB Bridge is very simple.


Key features

  • Serial SPI Compatible
  • Low Pin Count Interface (4 pins)
  • Can be shared with other chip I/O functions
  • AMBA AHB 3.0 Compatible
  • Compatible with NVIDIA Tegra devices
  • Compatible with Texas Instruments OMAP devices
  • Simple SPI Protocol supporting Reads and Writes
  • CRC protection in both directions
  • Transfer Acknowledge and Error Detection
  • Security Features can be added upon request

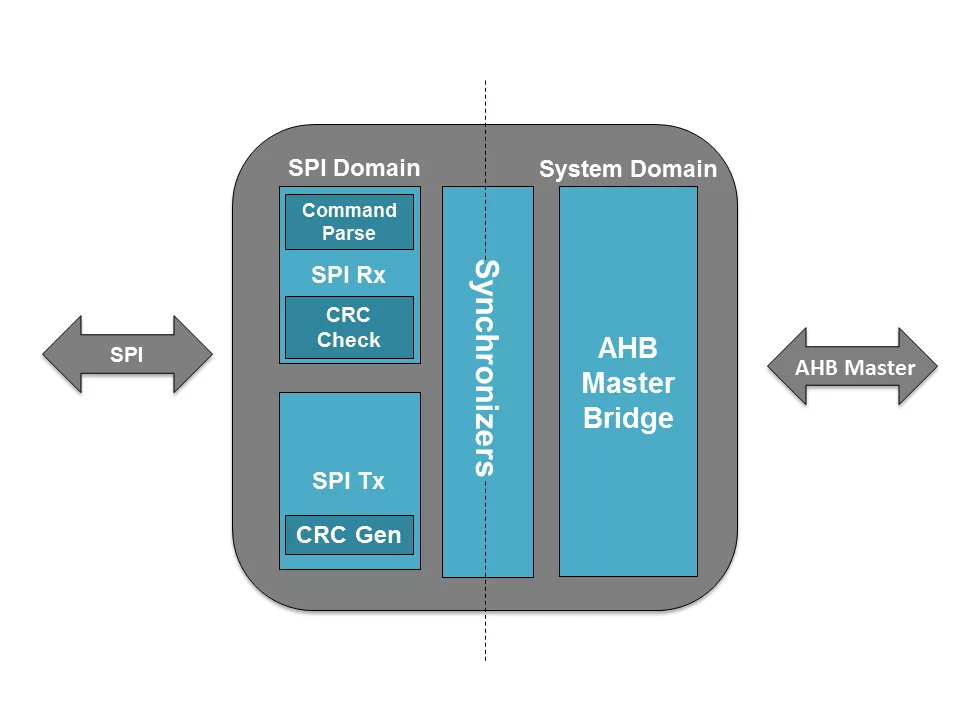

Block Diagram

Benefits

  • Low Gate Count
  • Low Power Consumption
  • Fully Verified
  • Spyglass Lint Validated
  • Standards Compliant

Applications

  • General System on Chip Use

What’s Included?

  • Synthesizable Verilog RTL
  • Verilog test bench and test cases
  • Detailed block diagram and technical documents

Specifications

Identity

Part Number
VV1400
Vendor
Veriest Solutions Ltd.
Type
Silicon IP

Provider

Veriest Solutions Ltd.
HQ: Israel
Veriest is an international design house providing forefront ASIC and FPGA design and verification services, as well as cutting edge EDA verification tools and platforms. Veriest's portfolio of clients includes the full range of globally established industry leaders, defense companies, and also startups at preliminary stages of developing high-end chip technology. Veriest was founded in 2007 by VLSI experts credited with rooted knowledge and experience in the field of ASIC and FPGA design. Veriest is headquartered in Bnei Brak, Israel with R&D also in Belgrade, Serbia. Its team of 70 engineers constitutes the key players in projects at the forefront of chip technology. We have made it our mission to provide our customers with complete quality solutions suited to the various phases of a product's life cycle. Our skilled and creative team can effectively promote architecture design, implementation, system integration and advanced verification. We are committed to answering industry demands relying on our wide range of field-proven methodologies and industry know-how, devising the working model that ideally accommodates the customer's needs.
