SOQPSK-TG Demodulator IP Core

Shaped Offset Quadrature Phase Shift Keying - Telemetry Group (SOQPSK-TG) is a type of QPSK/OQPSK modulation.

Contact Provider Request Datasheet

Overview

Shaped Offset Quadrature Phase Shift Keying - Telemetry Group (SOQPSK-TG) is a type of QPSK/OQPSK modulation. SOQPSK-TG provides constant-envelope modulation with continuous phase. This minimizes spectral occupancy and improves resistance to interference and nonlinear amplification.

The SOQPSK-TG Demodulator IP Core is a complete coherent demodulator that features fully digital symbol and carrier synchronization, a high dynamic range of gain control, and a soft-decision LLR output.

Product Options

  • IP customization and integration services available on request
  • Royalty-free license without quantitative restrictions
  • Off-the-shelf Xilinx and Analog Devices evaluation boards support

Key features

  • Compliant with the Telemetry IRIG 106-22 Standard
  • Different SOQPSK variants:
    • SOQPSK-TG
    • SOQPSK-MIL
    • SOQPSK-A
    • SOQPSK-B
  • Coherent demodulation
  • Digital dynamic range of 40 dB
  • Symbol rates from Fclk/4 to Fclk/65536
  • Low implementation loss
  • LLR soft decision for LDPC and Turbo FEC
  • Easy integration with JESD204B ADC

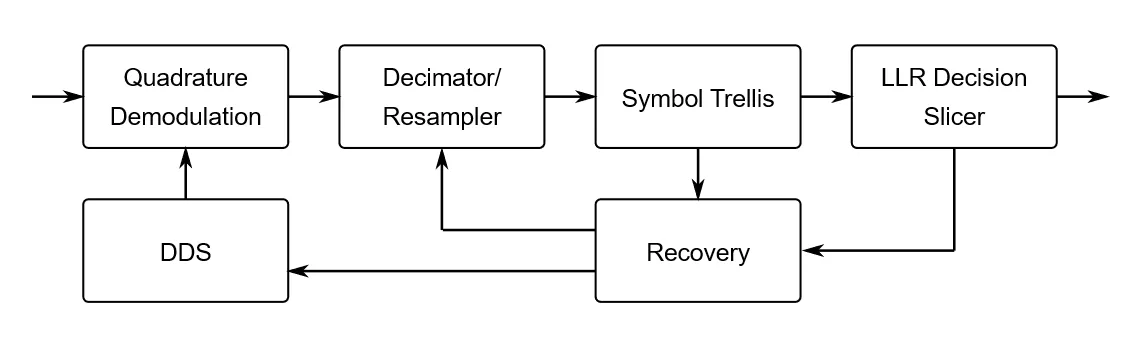

Block Diagram

ip-soqpsk-tg-demodulator block diagram

Applications

  • Satellite communication systems
  • Aeronautical telemetry systems
  • Power-efficient modems with nonlinear amplifiers
  • Telemetry modems

What’s Included?

  • Encrypted Netlist or Complete RTL Source Code versions
  • IP Core testbench scripts and design examples for evaluation boards
  • Comprehensive integration guide
  • Free 1 year technical support and maintenance updates

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
ip-soqpsk-tg-demodulator
Vendor
IPrium LLC

Provider

IPrium LLC
HQ: Italy
IPrium Modem IP Cores allow designers of communication equipment to rapidly develop and verify their systems in a highly cost-effective manner. IPrium offers FPGA IP Cores for high-quality wireless and wireline modems.
