Serial FPDP IP Core

sFPDP IP Core is based on ANSI/VITA 17.1-2003 Standards.

Contact Provider Request Datasheet

Overview

sFPDP IP Core is based on ANSI/VITA 17.1-2003 Standards. This IP core provides a relatively simple protocol using maximum available data throughput with a minimum protocol for point-to-point data links. sFPDP links support a wide range of physical interfaces with the most common option being 2.5 gigabits per second multimode fiber.
.

Key features

  • Compliant with ANSI/VITA 17.1-2003 Serial FPDP standard
  • Supported link speeds
    • 1.0625 Gbaud
    • 2.125 Gbaud
    • 2.5 Gbaud
  • Data Frames supported
    • Unframed Data
    • Single Frame Data
    • Fixed Size Repeating Frame Data
    • Dynamic Size Repeating Frame Data
  • System Configurations supported
    • Basic System
    • Flow Control
    • Bi-directional Data Flow
    • Copy Mode
    • Copy/Loop Mode
  • Host-Bus interface
    • Parallel FPDP
  • Configurable parametersTransmit FIFO depth
    • Receive FIFO depth
    • Transmit FIFO watermark to assert SUSPEND output
    • Transmit FIFO watermark for TX FIFO Overflow signal generation
  • Receive FIFO watermark for STOP/GO signal generation

Block Diagram

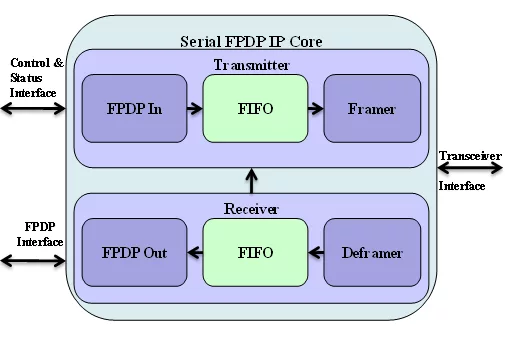

Serial FPDP block diagram

Benefits

  • This intellectual property core can be implemented on any transceiver based Xilinx/Altera/Lattice FPGAs.

Applications

  • Digital Signal Processing
  • Radar ,Sonar ,Range & Telemetry Systems
  • Instrumentation Recording Systems
  • High Speed Data Acquisition
  • Satellite Download
  • SIGINT – COMINT/ELINT
  • Medical: Medical Imaging
  • High Resolution Video
  • Storage Applications
  • Digital Receivers
  • Test Equipments
  • Spectrum and transient analysis

What’s Included?

  • ...

Specifications

Identity

Part Number
Serial FPDP
Vendor
iWave Systems Technologies Pvt. Ltd.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

iWave Systems Technologies Pvt. Ltd.
HQ: India
iWave Systems is a technology oriented organization founded in 1999 by enterprising technocrats, each with two decades of experience in the areas of Hardware and Embedded Software. We are an International design house with an energetic team of professionals with extensive experience in engineering real time embedded Systems. iWave Systems is poised to empower today's technology demands with appropriate, custom designed embedded system solutions. Our focus is in providing effective and efficient solutions to our customers at an optimal cost with an accelerated time-to-market. We help our customers worldwide to explore and leverage the state of the art technologies and achieve excellence in their business objectives.
