Vendor: Advanced Architectures Category: FIFO / CAM

Searchable Synchronous FIFO

The FIFO-CAM controls are designed to operate over a wide range of clock frequencies.

Contact Provider Request Datasheet

Overview

The FIFO-CAM controls are designed to operate over a wide range of clock frequencies. The interface signals are fully synchronous; no asynchronous signals are present on either side. Only reset may be asynchronous in that it may be asserted asynchronously and synchronized internally to the clock.

The contents of the FIFO buffer may be searched by a applying a search term to the ST input. If a match is found a bit-map of those locations that match are output on the EQ lines. This interface is asynchronous there being no registers within this datapath.

Key features

  • Fully Synthesizable RTL - Verilog
  • Static Timing Analysis compatible
  • Multiple Register for synchronous pipeline
  • Configurable width
  • Configurable overrun depth
  • Standard FIFO handshake interface

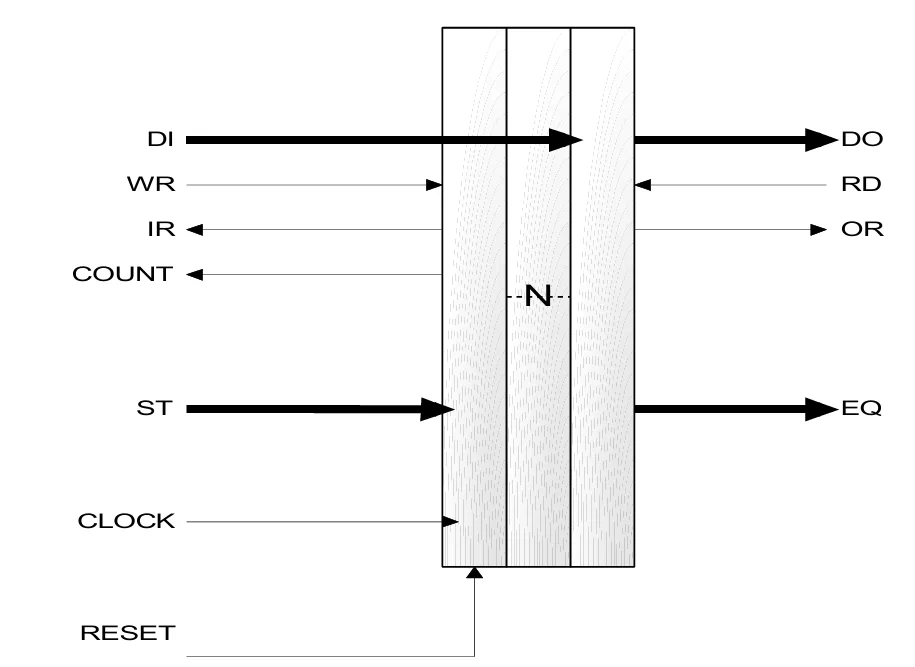

Block Diagram

A2_CAM_FIFO block diagram

Applications

  • MMU Translation Buffer
  • Tag buffer for tag based interfaces
  • Credit buffer for credit based interfaces
  • Small CAM
  • Victim Cache
  • Write Combining Buffer

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
A2_CAM_FIFO
Vendor
Advanced Architectures

Provider

Advanced Architectures
HQ: USA
Advanced Architectures is a service operation searching for successful partnerships and satisfied customers. It is already working with industry leaders, mid-size and small-size companies. A2's staff consists of experienced engineering personnel. Their scope of product exposure makes them unique compared to single product environments. The extent of the services available makes A2 very valuable to start-up, emerging growth companies and to emerging divisions in large companies. Advanced Architectures has extensive knowledge and experience in the development and application of high performance computing systems. Designs have ranged from complete supercomputer designs to customized DSP solutions with microprocessor based control and custom compute engines for compression and decompression algorithms
