ORAN IP core

scalable and silicon agnostic implementation of the interoperable O-RAN WG4 defined 7.2x interface ORAN IP core is a scalable and…

Contact Provider Request Datasheet

Overview

Highly scalable and silicon agnostic implementation of the interoperable O-RAN WG4 defined 7.2x interface

ORAN IP core is a highly scalable and silicon agnostic implementation of the interoperable O-RAN WG4 defined 7.2x interface for deployment in O-DU and O-RU products, targeting any ASIC, FPGA or ASSP technologies.

The ORAN over eCPRI implementation builds on long-time experience designing CPRI and Radio-Over-Ethernet solutions for fronthaul and delivers a flexible engine that is prepared for tight integration with software applications.

The IP is designed to meet or exceed the requirements of radio systems, base band systems, fronthaul switches or advanced test systems. The speed optimized core can handle any solutions reaching from the “small footprint” to the most complex applications running 25 Gbps. The IP can dynamically be configured to handle wireless multi-mode radio systems enabling high-performance throughputs required by 4G and 5G wireless solutions.

Key features

Richly Featured

  • Support for frequency-domain IQ transport
  • Supports 10G/25G Ethernet MAC ports
  • O-RU and O-DU variants available
  • Multiple Section Extension Types Supported
  • Wide flexibility for configuring

Silicon Agnostic

  • Targeting both ASICs and FPGAs

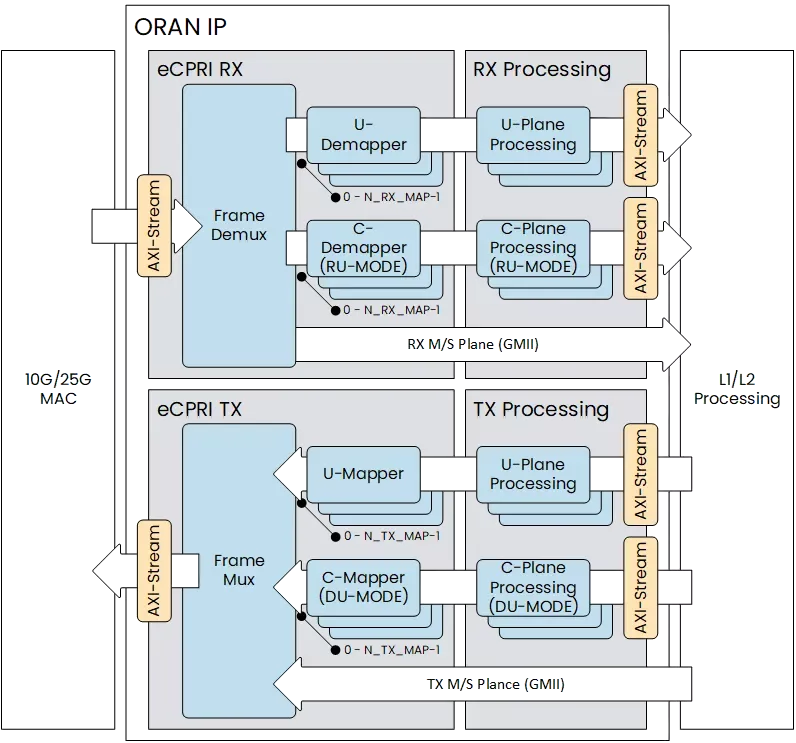

Block Diagram

ORAN block diagram

Benefits

  • Test Environment: ORAN IF IP is Tested in UVM regression for full functional coverage
  • Silicon Agnostic: Designed in Verilog and targeting ASICs and FPGAs
  • System Integration: Integration support with Ethernet components for quick and efficient  deployment
  • Active Support: All support is actively provided by engineers directly

What’s Included?

  • The IP Core can be delivered in Source code or Encrypted format.
  • The following deliverables will be provided with the IP Core license:
    • Solid documentation, including User Manual and Release Note.
    • Simulation Environment, including Simple Testbed, Test case, Test Script.
    • Timing Constraints in Synopsys SDC format.
    • Access to support system and direct support from Chip Interfaces Engineers.
    • Synopsys Lint and CDC (optional)

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
ORAN
Vendor
Chip Interfaces ApS

Provider

Chip Interfaces ApS
HQ: Denmark
Chip Interfaces is your trusted partner for digital high-performance IP cores that meet the demanding requirements of next-generation applications. With a proven track record of delivering cutting-edge IP solutions, Chip Interfaces is a partner you can trust for your next project. We consider ourselves at the forefront of innovation, empowering chip designers to achieve exceptional performance and reliability, through significant investments in next generation technologies. Our wide range of digital IP cores encompasses JESD204, MIPI, Interlaken, CPRI/eCPRI, and RSFECs. Chip Interfaces silicon-agnostic and customizable IPs are interoperability tested with leading PHY providers, verified using the latest UVM regression techniques, and validated in test beds to ensure seamless integration with a wide range of other components and hardware platforms. This commitment to interoperability, verification and validation simplifies the design process and minimizes the risk of integration issues and ensures quality. We provide comprehensive support throughout the entire IP implementation process, and Chip Interfaces offers direct support from the engineers who designed and developed the IP cores. This unparalleled access to IP experts ensures timely and accurate guidance, enabling faster time to market. Our commitment to quality and excellence, coupled with our true wish to make our customers succeed, positions us as a trusted partner for your next project.
