Vendor: BrainChip Inc. Category: Edge AI Accelerator

Neuromorphic Processor IP (Second Generation)

Akida is a neural processor platform inspired by the cognitive ability and efficiency of the human brain.

Contact Provider Request Datasheet

Overview

Akida is a neural processor platform inspired by the cognitive ability and efficiency of the human brain. The second-generation platform can independently perform complex inferencing and learning on extremely low-power AI devices, thus delivering highly accurate, intelligent, responsive, real-time applications with greater reliability and security. A scalable, self-contained co-processor for advanced neural networks. Extends support for advanced networks with spatio-temporal properties.

Key features

Self-contained neural processor

  • Scalable fabric of 1-128 nodes
  • Each neural node supports 128 MACs
  • 8,4,1, bit arithmetic precision
  • Programmable activation functions
  • Skip connections
  • Configurable 50-130K embedded local SRAM
  • DMA for all memory and model operations
  • Multi-layer execution without host CPU
  • AXI bus interface

 Efficient algorithmic hybrid mesh

  • Performs as Temporal Neural Processor (TNP), spatial Convolutional Neural Processor (CNP) and Fully-connected Neural Processor (FNP)
  • Integrates CNNs, Spatio-Temporal, TENNs Buffer networks

Akida efficiently accelerates…

  • Image and audio classification
  • Object detection
  • Scene segmentation
  • Gesture and face recognition
  • State-of-the-art algorithms in sequence prediction
    • Video object detection
    • Human action recognition
    • Raw-audio classification
    • Vital signs prediction

Notable features:

  • Supports 8-,4-,and1-bit weights and activations
  • Supports multiple layers simultaneously
  • Supports long-range skip connections in hardware

Software development and deployment:

  • Akida leverages standard frameworks and development platforms such as TensorFlow/Keras,  Pytorch/ONNX and Edge Impulse
  • Akida is model-, network-, and OS-agnostic
  • BrainChip MetaTF supports model development and optimization for Akida hardware
  • Akida model zoo offers a set of pre-built Akida-compatible models, pre-trained weights and training scripts
  • Akida TENNs models are offered for evaluation

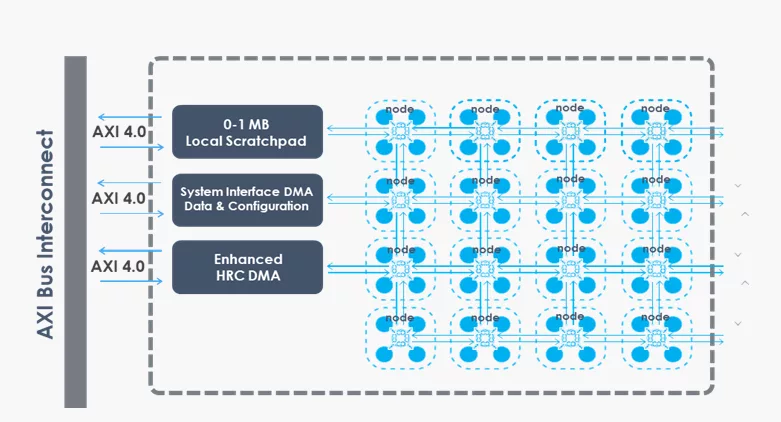

Block Diagram

Akida 2 block diagram

Benefits

  • Accelerates today’s networks: CNNs, DNNs and more, directly in hardware with minimal CPU intervention
  • Event-based processing: Computes only when necessary; substantially reduces number of operations executed and energy consumed
  • At-memory compute: Significantly reduces memory movement; uses cost effective, scalable, standard RAMs
  • Exceptional spatio-temporal capability: Patented Temporal Event-based Neural Nets (TENNs) revolutionize time-series data applications
  • Event-based communication: Sends data between NPUs through integrated mesh without any CPU intervention; offloads system
  • Intelligent runtime: Runtime manages all operation of neural processor, transparent to the user, accessible through a simple API

What’s Included?

  • Fully synthesizable RTL.
  • IP deliverables package with standard EDA tools.
  • Complete test bench with simulation results.
  • RTL synthesis scripts and timing constraints. Customized IP packaged targeted for your application.
  • Run time software C++ library.
  • Processor and OS agnostic.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Akida 2
Vendor
BrainChip Inc.

Provider

BrainChip Inc.
HQ: USA
BrainChip Holdings Ltd is a leading provider of low power, high performance edge AI technology using neuromorphic circuits, a type of artificial intelligence that is inspired by the biology of the human neuron. The Company’s revolutionary and proprietary new event-based spiking neural network technology can learn autonomously or execute pre-trained DNN entirely within the boundaries of the chip. The proprietary technology is fast, completely digital and consumes very low power. The Company provides hardware focused solutions that address high-performance requirements in sensory processing, gaming, financial technology, cybersecurity, ADAS, autonomous vehicles, and other advanced vision systems.
