Multiplexing transceiver with 4 CSI2 inputs and a single CSI2 output

This IP multiplexes inputs from up to 4 CSI2 cameras, each with up to 4 data lanes, to a single CSI2 output stream, with up to 4 …

Contact Provider Request Datasheet

Overview

This IP multiplexes inputs from up to 4 CSI2 cameras, each with up to 4 data lanes, to a single CSI2 output stream, with up to 4 lanes. It comprises of existing VLSI PLus IP cores, optimized for CSI2 multiplexing, and glue logic

Key features

  • Up to 4 CSI2 camera inputs
  • Each input is up to 4 data lanes
  • Output - 4 data lanes CSI stream

Block Diagram

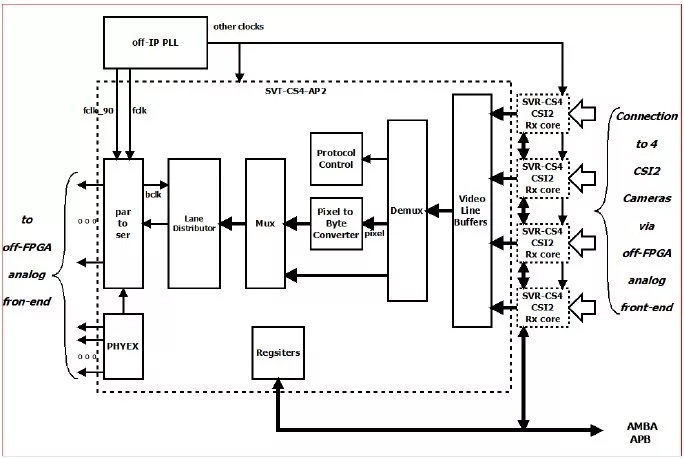

CSI2-MUX-A1-F block diagram

Benefits

  • Simple virtual-channel based multiplexing of CSI2 camera.

What’s Included?

  • Verilog RTL
  • SDC file

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
CSI2-MUX-A1-F
Vendor
VLSI Plus Ltd
Type
Silicon IP

Provider

VLSI Plus Ltd
HQ: Israel
VLSI Plus is a boutique engineering house, providing consulting services in all areas of VLSI design, as well as complete IP cores, to be integrated in customers’ VLSI products.
Contact VLSI Plus Ltd
