Vendor: M31 Technology Corp. Category: MIPI PHY

MIPI C-PHY v2.0 /D-PHY v2.5 Combo IP in TSMC

MIPI D-PHY is a serial interface technology which is widely adopted in smartphones and other multimedia enabled mobile devices.

Contact Provider Request Datasheet
TSMC 7nm N7+ View all specifications

Overview

MIPI D-PHY is a serial interface technology which is widely adopted in smartphones and other multimedia enabled mobile devices. To further improve throughput over bandwidth limited channel, the C-PHY is developed and is delivering 2.28 bits per symbol over three-wire trio. As a MIPI Alliance contributor and leading Interface IP provider, M31 provides a silicon-proven, low-power and low cost C-PHY/D-PHY combo IP on various process nodes. Users can configure the PHY into D-PHY mode or C-PHY mode to support different applications using the same PHY. It is compliant to the PPI interface which allows seamless integration with upside controllers for Camera Serial Interface (CSI-2) and Display Serial Interface (DSI) protocols.

Key features

  • Compliant with MIPI D-PHY v2.5 and C-PHY v2.0 specifications
  • Supports MIPI DSI and CSI-2 protocols
  • Supports HS data rates up to 6.5Gbps (6.5Gsps) per lane (per trio)
  • Supports LS data rate of 10Mbps and Ultra-low power modes
  • Supports D-PHY mode with 1 clock lane & up to 4 data lanes
  • Supports C-PHY mode up to 3 trios for TX and 4 trios for RX
  • Supports extra RX mode with 2 sets of 1 clock lane & up to 2 data lanes
  • Supports Alternate Low-Power (ALP) mode
  • Provides D-PHY swap function for clock and data lane
  • Provides C-PHY swap function for trio
  • Provides a stand-alone BIST module for at-speed mass production testing
  • Certified with ASIL-B of ISO-26262

Block Diagram

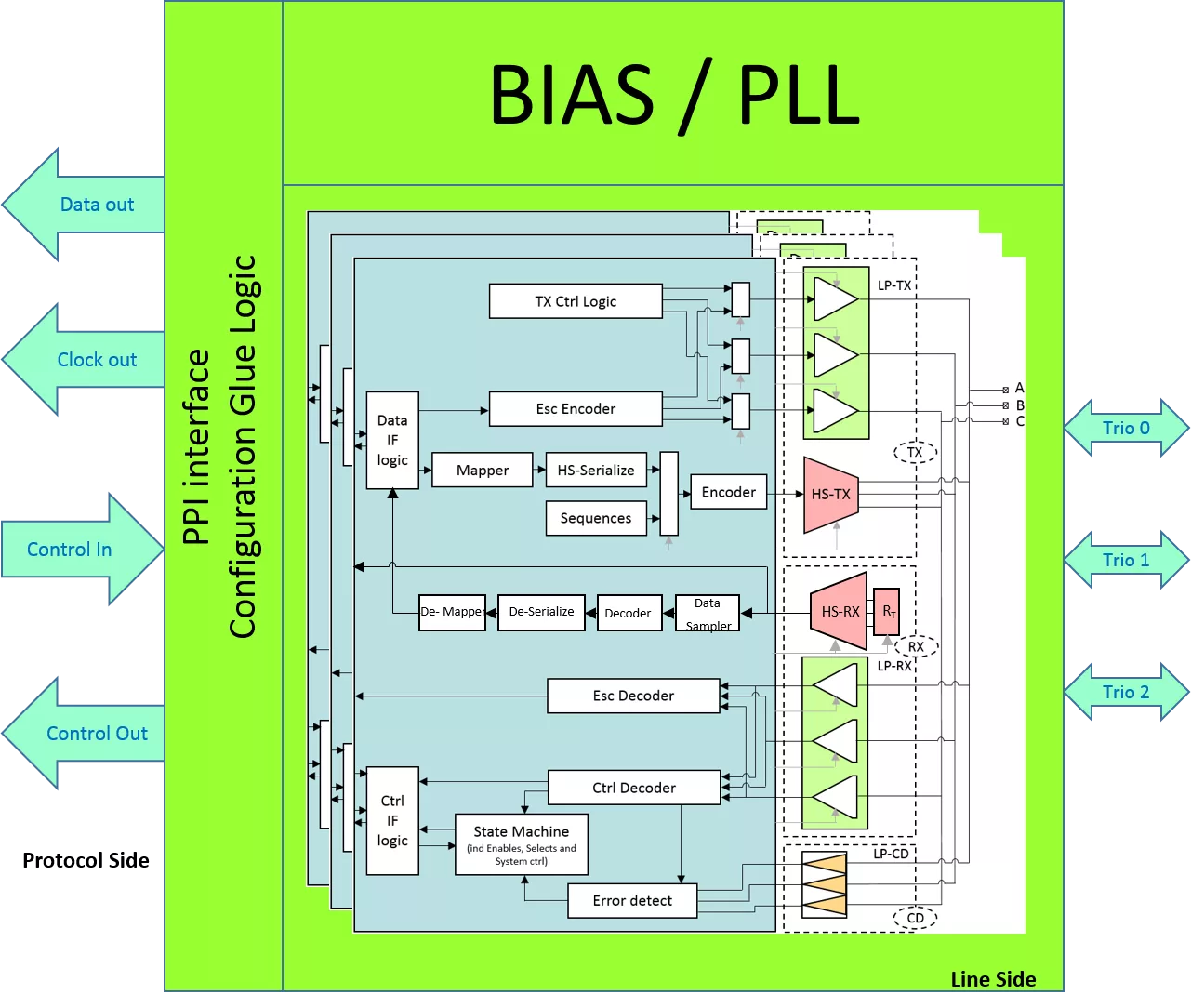

M31 MIPI IP for Mobile / Automotive Applications block diagram

Files

Product Sheet Download
