MIL-STD-1553 Verification IP

The Military Standard 1553 (MIL-STD-1553) Verification IP offers a streamlined and efficient solution for verifying Military Stan…

Contact Provider Request Datasheet
Verification IP View all specifications

Overview

The Military Standard 1553 (MIL-STD-1553) Verification IP offers a streamlined and efficient solution for verifying Military Standard 1553 components within an IP, Subsystem. The VIP fully adheres to the MIL-STD-1553 Specification version B & C and lightweighted with easy plug and play components (Bus Controller, Remote Terminal, Bus Monitor) features, ensuring that it does not impact the design cycletime.

Key features

  • Supports up to 31 Remote Terminals (devices).
  • Supports up to 30 sub-addresses (sub-system).
  • Supports multiple (commonly dual) redundant buses.
  • Supports Dual Pins for multiple (commonly dual) redundant buses.
  • Supports all MODE CODE functionality defined in Specification.
  • Supports Bus Controller to Remote Terminal Transmission.
  • Supports Bus Controller Broadcasts messages to multiple Remote Terminals simultaneously.
  • Supports Remote Terminal to Remote Terminal Transmission.
  • Supports Remote Terminal Broadcasts messages to multiple Remote Terminals simultaneously.
  • Supports Bus Monitor which observes the communication without actively participating, capture and analyze data for diagnostic purposes.
  • Supports Manchester II biphase level enconding for all communications.
  • Supports various Callback methods

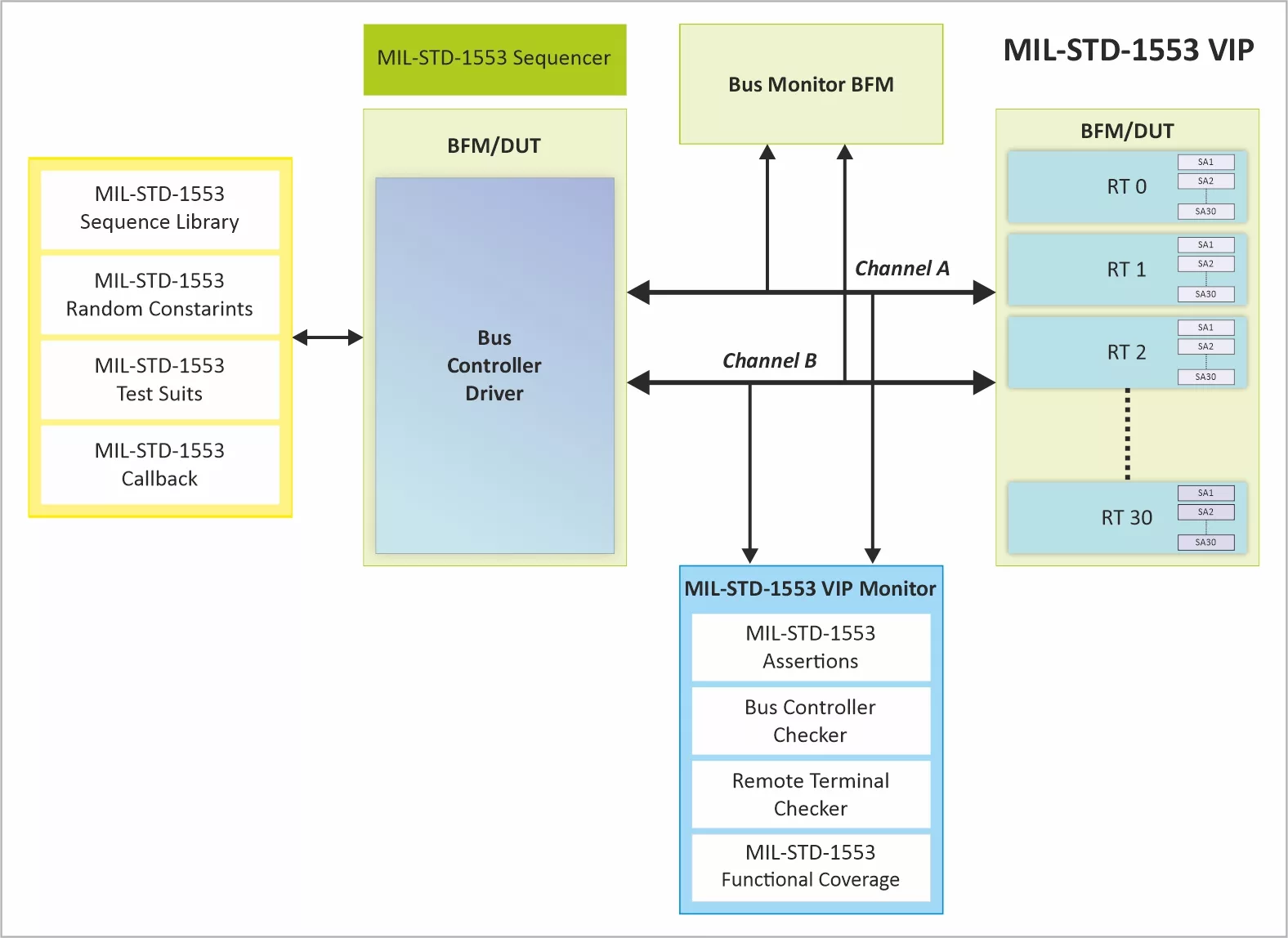

Block Diagram

MIL-STD-1553 block diagram

Benefits

  • Available in native System Verilog (UVM/OVM /VMM) and Verilog.
  • Unique development methodology to ensure the highest levels of quality.
  • Availability of various Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and cover points with connectivity examples for all the components
  • Supports various Callback methods.
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solutions and easy integration in an IP environment.

What’s Included?

  • MIL-STD-1553 Protocol, Bus Controller, Remote Terminal, Bus Monitor, VIP Monitor BFM Agents.
  • Supports 100% functional coverage.
  • MIL-STD-1553 Bus Controller, Remote Terminal, Bus Monitors, VIP Bus Monitor.
  • MIL-STD-1553 Callback methods.
  • Testbench Configurations
  • Integration Guide, User Manual and Release Notes.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
MIL-STD-1553
Vendor
Truechip Solutions
Type
Verification IP

Provider

Truechip Solutions
HQ: USA
Truechip is a leading provider of Design and Verification solutions – which help you to accelerate your design, lowering the cost and the risks associated in the development of your ASIC, FPGA and SoC. Truechip is a privately held company, with a global footprint and with a strong and experienced leadership team. Truechip was established in 2008 with a Mission to:
  • To create world class Verification IP Solutions
  • To provide expert consultancy to ASIC & SoC Design companies
  • To design SOCs from Architecture to Working Silicon
Our Vision is to:
  • To be the leading provider of Semiconductor IP Solutions
  • To be a one-stop-shop for Design and Verification
Our Guiding Principles are:
  • Customer Success
  • Commitment to Quality
    • Quality of Products
    • Quality of Engineers
  • Best in class Customer Support
  • Ethics and Integrity
We at Truechip leverage the extensive domain knowledge and expertise from current associations to provide complete set of design and verification solutions to our customers.
