Linear Temperature Sensor

The TS_SN_TEMP_X8 is a temperature sensor generating an output voltage on VOUT, linearly increasing with junction temperature and…

Contact Provider Request Datasheet

Overview

The TS_SN_TEMP_X8 is a temperature sensor generating an output voltage on VOUT, linearly increasing with junction temperature and trimmable to 2V at 60°C. It operates with a single supply voltage, VDDA4 (4V typical from the additional IP TS_VR_4V00_X8) and is meant for on-chip internal operation. Its inputs or outputs that need access to bond pads will require the insertion of ESD protected buffers.

The DC load current through VOUT must be kept at 0A. The possible load may be either capacitive or the input resistor of an inverting integrator.

The minimum continuous operation lifetime spans 100000 hours.

Operating conditions

Parameters Values
Junction temperature range 20ºC to +80ºC
Supply voltages VDDA4: 3.9V to 4.1V (supplied by the additional IP TS_VR_4V00_X8)
EN, TRIM<3:0> logic-high voltage level VDDA4

Specification

Parameters Values
Output voltage at TJ=60°C
EN = H, TRIM<3:0> = LHHH, HLLL or HLLH		 Minimum 1.995V, typical 2.000V, maximum 2.005V
VOUT temperature coefficient
EN = H, TRIM<3:0> = HLLL		 Typical +6.2mV/°C
Total output noise level over 1Hz to 10MHz
EN = H, TRIM<3:0> = HLLL		 Maximum 0.3mVRMS
Thermal response 3dB cut-off frequency
EN = H, TRIM<3:0> = HLLL		 Minimum 100Hz
Start-up time
Unloaded VOUT, EN toggling from L to H, TRIM<3:0> = HLLL		 Maximum 10ms
Operating power consumption
Enable EN high (H), TRIM<3:0> = HLLL		 200µW max
Powerdown-mode current consumption
Enable EN low (L)		 100nA max
Area 0.117mm²


Vd0_AC and R0_AC must be interconnected. They are provided for temperature-response AC analysis simulations only.

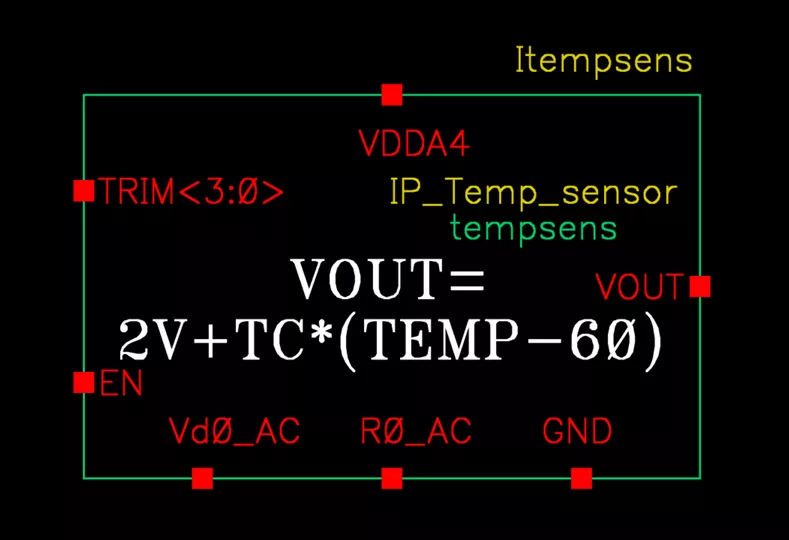

Block Diagram

TS_SN_TEMP_X8 block diagram

Specifications

Identity

Part Number
TS_SN_TEMP_X8
Vendor
TES Electronic Solutions
Type
Silicon IP
