Vendor:
Fraunhofer IPMS
Category:
Temperature Sensor
Ultra low power temperature sensor for X-FAB 350nm
Fraunhofer IPMS offers an ultra low power analog temperature sensor generating temperature dependent clock outputs.
Overview
Fraunhofer IPMS offers an ultra low power analog temperature sensor generating temperature dependent clock outputs. Optional digital counter logic is available.
Key features
- Silicon proven in X-FAB XH035
- Input Voltage: 2.0 – 3.3V
- Power consumption: 80µW typical
- temperature dependent clock outputs
- Optional digital counter logic
- Adjustable power vs. measurement time

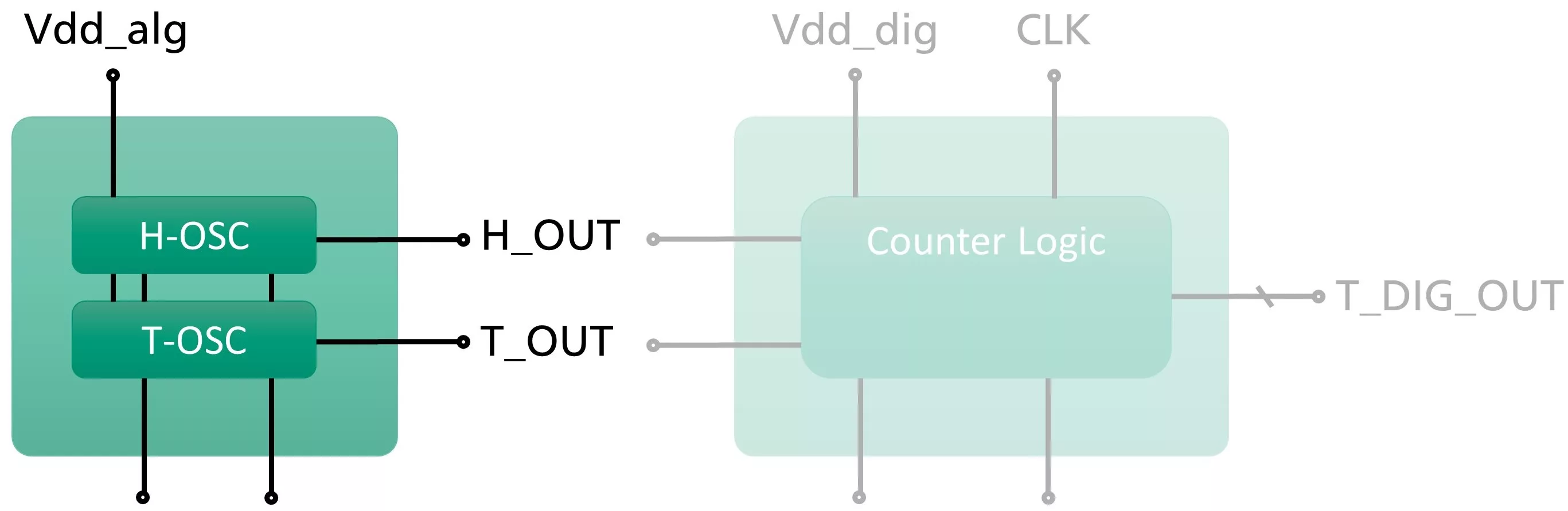

Block Diagram
IPMS-TSEN block diagram
Benefits
- Low power systems
- Battery-free IoT devices
- Wireless sensor modules
- Sensor modules with long lifetime
Applications
- IoT devices
- Wireless modules
- Sensor modules
- Medical devices
What’s Included?
- Datasheet & integration guide
- HDL model
- GDSII layout
- Customer support
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| X-FAB | 350nm | XH035 | Available on request |
Specifications
Identity
Part Number
IPMS-TSEN
Vendor
Fraunhofer IPMS
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
Fraunhofer IPMS
HQ:
Germany
Fraunhofer IPMS is a worldwide leader in developing and providing analogue and digital IP Cores as well as in system integration. IPMS IP core portfolio comprises wireless, wireline, computing and power management IP which are FPGA and silicon proven in many different markets. Automotive and space certifications are available for selected IP and could be accomplished for others on customer request.
