Overview

The Interlaken Verification IP provides an effective & efficient way to verify Devices with Interlaken controller supporting any number of lanes. The Interlaken VIP is fully compliant with Interlaken Protocol Definition 1.2. This VIP is a lightweight VIP with an easy plug-and-play interface so that there is no hit on the design time and the simulation time.

Key features

  • Compliant to Interlaken Protocol Specification Rev 1.2, Interlaken Look-Aside Protocol Definition Rev 1.1, Interlaken Retransmit Extension Protocol Definition Rev 1.2, Interlaken Interoperability Recommendation v 1.9.
  • Complainto theReed Solomon Forward Error Correction Extension 1.0
  • Configurable BurstMax, BurstMin, BurstShort size, Meta Frame Length, Channel ON/OFF.
  • Configurable Number of lanes. Up to 64K channels using Multi-Use bits.
  • Supports both In-band and Out of band flow control.
  • Supports the Optional Scheduling mechanism.
  • Configuration to disable the scrambling function.
  • Flexibility to schedule packets for different channel
  • based on priority.
  • 64/67B encoding supported with inversion bit added
  • according to the disparity.
  • Support for packet and segment mode or both.
  • Supports all types of error injection and detection.
  • On-the-fly protocol checking using protocol check functions.
  • Complete static and dynamic assertion protocol checks.
  • Built-in coverage analysis.
  • Test pattern generation as per specification.

Block Diagram

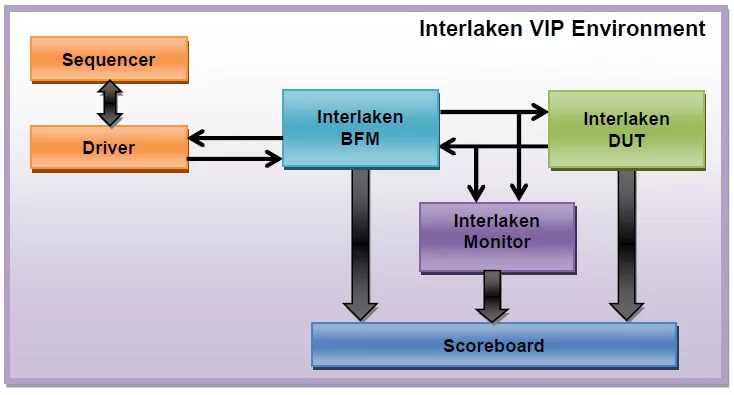

Interlaken v 1.2 block diagram

Benefits

  • Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
  • Unique development methodology to ensure highest levels of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity example for all the components
  • Consistency of interface, installation, operation and documentation across all our VIPs

What’s Included?

  • Interlaken Transmitter and Receiver with description for the user interface.
  • Interlaken Monitor and Scoreboard
  • Test-Bench Configurations
  • Test Suite (Available in Source code) :
    • Basic Protocol Tests
    • Directed & Random Tests
    • Assertion and Cover Point Tests
  • Integration Guide, User Manual and Release Notes
