Vendor: Shikino High-Tech CO.,LTD Category: ISP Image Signal Processor

"Image Signal Processor" with the minimum functions required for image processing system

Because our ISP-IP is equipped with the minimum necessary functions, it reduces the load on the CPU that performs some solutions …

Contact Provider Request Datasheet

Overview

Because our ISP-IP is equipped with the minimum necessary functions, it reduces the load on the CPU that performs some solutions and it realizes low power consumption of image processing system, for instance, ”AI processing of images" etc.

Key features

  • Sensor correction segment:
    • Black Level correction/Demosaic/Color space conversion
  • Automatic control segment:
    • Auto White Balance(AWB)?Auto Exposer(AE)
  • Image correction processing segment:
    • Tone curve correction/Gamma correction/Color space conversion
  • Pixel size:
    • Horizontal 4K pixels × Vertical 2K pixels
  • Data Rate:
    • 1 pixel/clk
  • Format:
    • RAW(Bayer arrangement) / RGB / YCbCr444
  • Bit depth:
    • 8~12bit
  • Scanning system:
    • Raster scan, Progressive scan
  • Input / output format:
    • AMBA4 AXI4-Stream

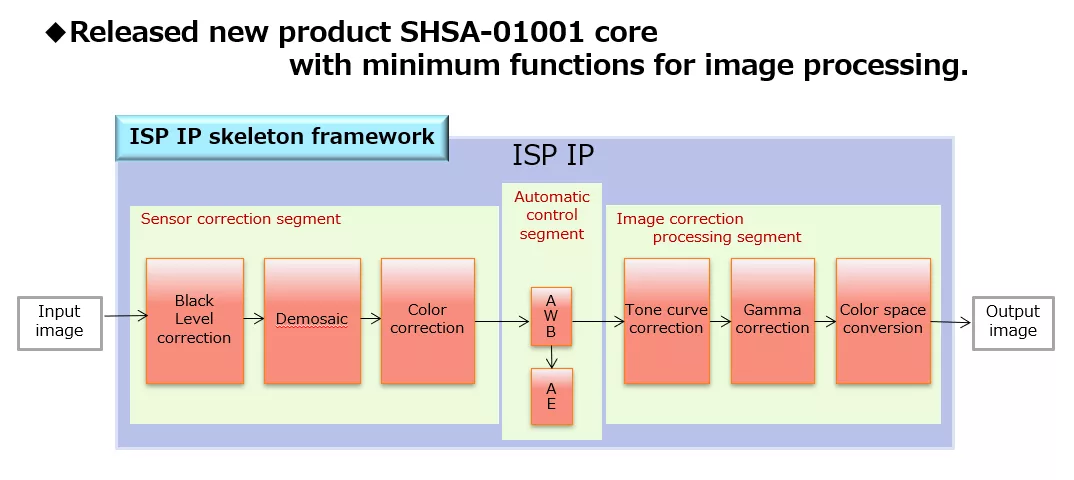

Block Diagram

SHSA-01001 block diagram

Applications

  • Industrial equipment
  • Drone
  • AI
  • Surveillance camera system
  • Facsimile
  • Image transfer devices
  • Medical devices
  • Visual inspection
  • Measuring equipment

What’s Included?

  • The followings encrypted Deliverables
    • RTL:Verilog-HDL
    • C-Model
    • Specification Document
    • Simulation environment
    • Synthesis scripts

Specifications

Identity

Part Number
SHSA-01001
Vendor
Shikino High-Tech CO.,LTD
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Shikino High-Tech CO.,LTD
HQ: Japan
Shikino High-Tech has created new value in the field of electronics, rooted in the Shikino spirit of nothing ventured, nothing gained. We continue to make progress with our exemplary design and development capabilities in those areas of technology which are our pride, including our module development centered around camera systems and image processing modules, design & development in the image processing sector based around our own JPEG IP technology, and the design and development of semi-conductor testing equipment such as LSI test development which contributes to the prompt startup of production lines and burn-in devices which guarantee total burn-in.
