HDMI 2.0/MHL RX Combo 1P PHY 6Gbps in TSMC 28nm HPC 1.8V, North/South Poly Orientation
The HDMI 2.0 RX Controller and PHY IP solutions provide the necessary logic to implement and verify designs for various consumer …
Overview
The HDMI 2.0 RX Controller and PHY IP solutions provide the necessary logic to implement and verify designs for various consumer electronic applications. The HDMI RX IP solutions are shipping in volume and have gone through extensive in-house and third-party interoperability testing, enabling SoC designers to lower integration risk and accelerate time-to-market.
The complete HDMI IP solution consists of digital controllers, High-Bandwidth Digital Content (HDCP) embedded security modules (ESMs), PHYs and verification IP as well as IP Prototyping Kits with associated software and drivers. The IP solutions are HDMI 2.0 and HDCP 2.3 certified with embedded security modules, ensuring the highest content protection over the HDMI 2.0 interface or ultra-high-definition multimedia SoCs.
Key features
- Support for key HDMI 2.0 features such as 4K x 2K resolution at 60 Hz frame rate, YCbCr 4:2:0 pixel encoding format, TMDS scrambling, High Dynamic Range (HDR), CEC 2.0 and 18.0 Gbps aggregate bandwidth
- Compliant with HDMI 2.0 and HDCP 2.3, 1.2 specification
- Optimized for low power and small area
- Integrated audio return channel (ARC) block
- 1-, 2-, or 4-port input with fast switching
- Timing hardened blocks simplify placement and design closure
- High-performance RX PHY IP enables long cable lengths
- Configurable controller architecture optimized for power, performance, and area
Block Diagram

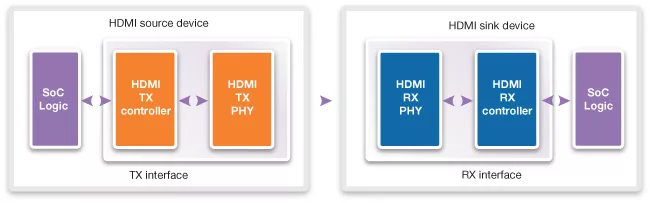

dwc_hdmi20_mhl_rx_ns_1p_6gbps_tsmc_28hpc18 block diagram
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 28nm | 28nm 280 nm | — |
Specifications
Identity
Part Number
dwc_hdmi20_mhl_rx_ns_1p_6gbps_tsmc_28hpc18
Vendor
Synopsys, Inc.
Type
Silicon IP
Provider
Synopsys, Inc.
HQ:
USA
Synopsys is a leading provider of high-quality, silicon-proven semiconductor IP solutions for SoC designs. The broad Synopsys IP portfolio includes logic libraries, embedded memories, analog IP, wired and wireless interface IP, security IP, embedded processors and subsystems. To accelerate IP integration, software development, and silicon bring-up, Synopsys’ IP Accelerated initiative provides architecture design expertise, pre-verified and customizable IP subsystems, hardening, and signal/power integrity analysis. Synopsys' extensive investment in IP quality, comprehensive technical support and robust IP development methodology enables designers to reduce integration risk and accelerate time-to-market.
