Vendor: SmartDV Technologies Category: Ethernet

Ethernet AVB Verification IP

The Ethernet AVB Verification IP is compliant with IEEE 802.3 and IEEE 1722 specifications.

Contact Provider Request Datasheet
Verification IP View all specifications

Overview

The Ethernet AVB Verification IP is compliant with IEEE 802.3 and IEEE 1722 specifications. Ethernet Audio Video Bridging is an emerging IEEE 802.1 standard designed by Audio Video Bridging (AVB) group to provide a reliable, high quality of service and low latency solution for streaming media. It can work with SystemVerilog,Vera, SystemC, E and Verilog HDL environment. Ethernet AVB Verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethernet product.

Ethernet AVB Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

Ethernet AVB Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Key features

  • Supports AVB Endpoint talker and/or listener functionality
  • Full support for IEEE 1722
  • Full support for IEEE 802.1BA
  • Full support for IEEE 802.1Qav
  • Full support for IEEE 802.1Qat
  • Full support for IEEE 802.1AS
  • Supports 1G
    • Supports GMII
    • Supports TBI (i.e Output of 8b/10b PCS)
    • Supports SGMII as per specification 1.8
    • Supports QSGMII as per specification 1.2
    • Supports USGMII as per specification 3.0 (5G and 10G)
    • Supports RGMII/RTBI as per specification 2.0
    • Supports 1000Base-KX
    • Supports 1GBASE-SX and 1GBASE-LX
    • Supports clause 73 backplane auto-negotiation for 1000Base-KX
    • Supports clause 37 auto-negotiation
    • Supports SGMII auto-negotiation
    • Supports QSGMII auto-negotiation
    • Supports USGMII auto-negotiation and packets
    • Supports full duplex and half duplex of operation
  • Supports 100M
    • Supports MII
    • Supports SMII as per specification 2.1
    • Supports RMII as per specification 1.2
    • Supports 100BASE-FX
  • AVB protocol can be run over other ethernet speeds also
  • Supports MDIO slave and master model as per Clause 22 and Clause 45
  • Glitch insertion and detection
  • Supports all types of TX and RX errors insertion/detection at each layer.
  • Comes with Tx BFM, Rx BFM, and Monitor
  • Monitor supports detection of all protocol violations
  • Supports Pause frame generation and detection
  • Built in coverage analysis
  • Callbacks in master and slave for various events
  • Status counters for various events in bus

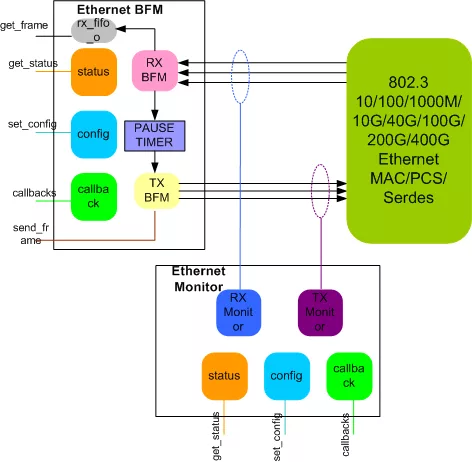

Block Diagram

Ethernet AVB VIP block diagram

Benefits

  • Faster testbench development and more complete verification of Ethernet-AVB designs
  • Easy to use command interface simplifies testbench control and configuration of TX and RX
  • Simplifies results analysis
  • Runs in every major simulation environment

What’s Included?

  • Complete regression suite (UNH) containing all the Ethernet-AVB testcases.
  • Examples showing how to connect various components, and usage of TXRX BFM and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.

Specifications

Identity

Part Number
Ethernet AVB VIP
Vendor
SmartDV Technologies
Type
Verification IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

SmartDV Technologies
HQ: India
At SmartDV Technologies™, we believe there’s a better way to approach semiconductor intellectual property (IP) for integrated circuits. We’ve been focused exclusively on IP since 2007—so whether you’re sourcing standards-based design IP for your next SoC, ASIC, or FPGA, or seeking verification solutions (VIP) to put your chip design through its paces, you’ll find SmartDV’s IP straightforward to integrate. By combining proprietary SmartCompiler™ technology with the knowledge of hundreds of expert engineers, SmartDV can customize IP to meet your unique design objectives: quickly, economically, and reliably. Don’t allow other suppliers to force onesize-fits-all cores into your chip design. Get the IP you need, tailored to your specifications, with SmartDV: IP Your Way.
