Enhanced SPI Controller IP- Master/Slave, Parameterized FIFO, AMBA APB / AHB / AXI Bus. Supports eSPI Master & Slave and SPI Master & Slave functions

The DB-eSPI-SPI-MS-AMBA is a Serial Peripheral Interface (SPI) Controller Verilog IP Core supporting the addition of Enhanced SPI (eSPI) bus transfers to the standard SPI Master/Slave Controller. The DB-eSPI-SPI-MS contains an AMBA AXI, AHB, or APB Bus Interface for interfacing a microprocessor to external eSPI or SPI Master/Slave devices.

The DB-eSPI-SPI-MS contains both eSPI and SPI Master and Slave functions.

Programming the DB-eSPI-SPI-MS lets it communicate with external eSPI or SPI Master or Slaves.

The DB-eSPI-SPI-MS contains Transmit/Receive FIFOs and multiple Finite State Machine control with status & interrupt capability to fully off-load from the microprocessor the transfer of data over the eSPI/SPI Bus. Optionally, the user can transfer transmitted or received data from the eSPI/SPI Bus to user memory or registers via an optional DMA Controller.

The DB-eSPI-SPI-MS targets ASIC / ASSP / FPGA integrated circuits, where typically, the microprocessor is an ARM or RISC-V processor, but can be any embedded processor.

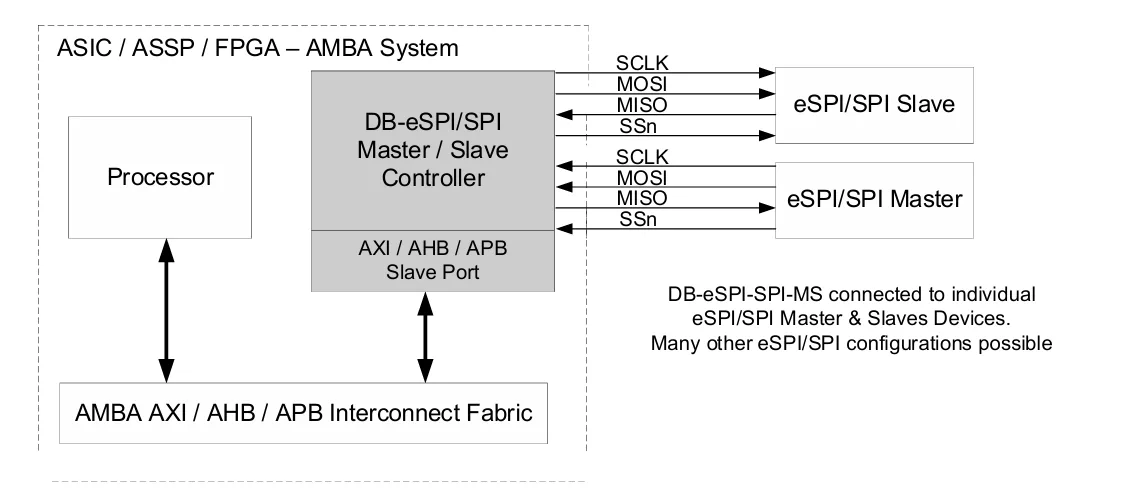

Figure 1 depicts the system view of the DB-eSPI-SPI-MS Controller IP Core embedded within an integrated circuit device.

• Features – DB-eSPI-MS Controller
  • Master & Slave eSPI and standard Master/Slave SPI Modes (see below)
  • eSPI Full Duplex Transfers - Command Phase followed by Response Phase
  • eSPI Slave supports eSPI Bus Protocol and Transaction and Link Layer requirements
  • Additional eSPI Signals to SPI Interface:
    • RESET#
    • ALERT#
  • RESET# programmable as input or output
  • ALERT# input interrupts CPU
  • Support for interface up to 8 eSPI Slaves (Contact Digital Blocks if more needed)
  • CRC-8 Generator on Transmit & Checker on Receive
  • Compliance to eSPI Master function with Enhanced Serial Peripheral Interface (eSPI), Interface Base Specification, January 2016, Revision 1.0.
• Features – DB-SPI-MS Controller
  • Master and Slave SPI Modes
  • Half Duplex / Full Duplex Transfers – Simultaneous Transmit & Receive
  • Original 4 Signal Interface (1 data lane, 4-wire Interface):
    • MOSI - Master Output, Slave Input (Data)
    • MISO - Master Input, Slave Output (Data)
    • SCK - Serial Clock
    • SS[N:0] - Slave Select
  • Configurable SPI Modes for 1/2/4/ Data Lanes: (Optional):
    • Standard SPI Mode (1 Data Lane)
    • Dual SPI Mode (2 Data lanes)
    • Quad SPI Mode (4 Data Lanes)
  • 3-wire SPI Interface (Optional)
  • Up to N=8 Slave Select (SS) Outputs for multiple Slaves on SPI Bus
  • Programmable SPI Frame Formats:
    • Programmable Words-Per-Frame (1 to Full Depth of FIFO)
    • Programmable LSB-first or MSB-first frames
  • Two Clock Domains:
    • AMBA Bus / SCK Clocks
  • SCK Clock Generator - Master Mode (Optional):
    • Programmable SCK Rate
    • Programmable Clock Phase & Polarity
  • Configurable FIFO depth for off-loading the SPI transfers from the processor:
    • Separate Transmit / Receive FIFOs
  • Optional DMA Controller for transfers between User Memory & SPI Bus
  • Internal interrupts with masking control
  • Available AMBA Microprocessor Interfaces:
    • AXI / AHB / APB Buses
    • 8 / 16 / 32 bit Data Interface
  • Fully-synchronous, synthesizable Verilog RTL core, with rising-edge clocking, no gated clocks, and no internal tri-states, for easy integration into FPGA or ASICdesign flows.

• Verilog or VHDL RTL Source or technology-specific netlist.
• Comprehensive testbench suite with expected results.
• Synthesis scripts.
• Installation & Implementation Guide.
• Technical Reference Manual.
