DVB-C demodulator / J83 demodulator

The CMS0022 DVB-C/J.83 Cable Demodulator is a 4th generation design that exploits the vendor’s experience of QAM and OFDM systems…

Contact Provider Request Datasheet

Overview

The CMS0022 DVB-C/J.83 Cable Demodulator is a 4th generation design that exploits the vendor’s experience of QAM and OFDM systems for broadband terrestrial, satellite and cable modems.

The core forms an integrated cable demodulator solution comprising of the Universal QAM Demodulator(CMS0006) and J.83abc/DVB-C Cable FEC Decoder(CMS0018) cores.

The core has been designed to lock robustly in the presence of noise, frequency & timing offsets, static & dynamic multi-path channels and various other forms of interference. The demodulator core consists of four major sub-modules: the Radio interface & decimator, Symbol timing recovery, Equaliser and the FEC Decoder.

The operation of the demodulator is fully automated by an internal state machine.

Key features

  •
  • DVB-C EN 300 429
  • ITU J83 Annexes A/B/C
  • DOCSIS 1.1 / 2.0
  • IF sub-sampling or I/Q baseband interface.
  • Standard 188-byte MPEG Transport Stream output.
  • Variable ADC width support.
  • Single external clock source required.
  • Single external analogue loop for AGC.
  • Fully digital and automatic timing & frequency recovery - no VCXO or AFC required.
  • Fully-digital matched channel filter for robust performance in the presence of ACI.
  • Automatic QAM mode, FEC and spectral inversion searching.
  • Pre-Viterbi and Pre-RS bit-error-rate (BER) statistics.
  • Post-FEC bit-error-rate (BER) statistics.
  • Blind and decision-directed adaption algorithms ensure rapid convergence of AGC, PLL and equaliser sub-systems.
  • Automatic channel equalisation using LTE and DFE algorithms - signal quality estimate available.
  • Symbol rate recovery up to approximately 40% of the master clock frequency.
  • Full DVB-C/J83 QAM support: 16, 32, 64, 128, 256
  • Implementation loss of <1dB for 128 or 256-QAM, and <0.5dB for other supported QAM modes.
  • External RAM interface for long interleave modes.
  • Number of debug signals available - carrier, timing lock, frequency offset etc.
  • Supplied as a protected bitstream or netlist (Megacore for Altera FPGA targets).

Block Diagram

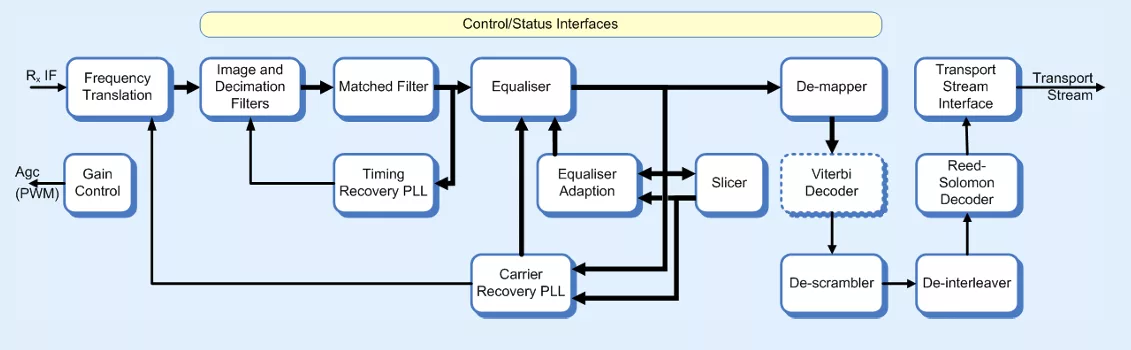

CMS0022 block diagram

Specifications

Identity

Part Number
CMS0022
Vendor
Commsonic Ltd
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Commsonic Ltd
HQ: UK
Commsonic is a design services company specialising in the development of ASIC, FPGA, DSP and board-level sub-systems for applications in wireless and wireline communications.

Our expertise is primarily in the gate- and power-efficient implementation of physical-layer (PHY) functions such as: modulation, demodulation, equalisation and channel coding but our experience encompasses all of the major elements of a modern baseband 'core' including the medium access control (MAC), voiceband DSP, mixed-signal interfaces, and embedded Cpu and software.

Our services are provided on a turnkey basis or as part of a support package attached to our licenced IP or tool products.

Commsonic's customers are typically semiconductor vendors and manufacturers of communications equipment that require leading-edge, Standards-based or proprietary PHY solutions but lack the internal resources or skills necessary to deliver projects against aggressive deadlines.

Contact Commsonic Ltd
