Dual Low-Side Ultrafast MOSFET Driver

The dual high-speed gate drivers are especially well suited for driving the MOSFETs and IGBTs.

Contact Provider Request Datasheet

Overview

The dual high-speed gate drivers are especially well suited for driving the MOSFETs and IGBTs. Each of the two outputs can source and sink 4A of current while producing voltage rise and fall times of less than 10 ns. Low propagation delay and fast, matched rise and fall times make the driver ideal for high-frequency and high-power applications.

Key features

  • Wide operating voltage range: 7 V..40 V
  • Extended operating temperature range: -40 °C to +150 °C
  • Non-inverting path
  • 4 A source/sink drive current
  • Low On-Off Delay Time: 50 ns

Block Diagram

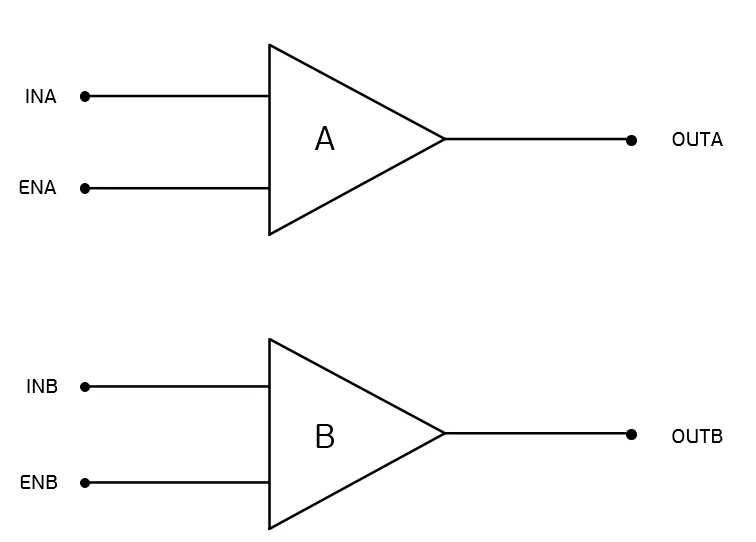

TI-DR-LS block diagram

Benefits

  • Outputs may be connected in parallel for higher drive current
  • Under voltage lock out on power supply
  • Matched rise and fall times
  • Low propagation delay time
  • Low output impedance
  • ESD – protection

Applications

  • Efficient power MOSFET and IGBT switching
  • Switch mode power supplies
  • Motor controls
  • DC/DC converters
  • Class-D switching amplifiers
  • Pulse transformer driver

What’s Included?

  • Datasheet
  • GDSII database
  • Customer support

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
TI-DR-LS
Vendor
Thesys-Intechna
Type
Silicon IP

Provider

Thesys-Intechna
HQ: Russia
