Dual Channel Digital Capacitive Sensor Interface

The MVCT018 is a programmable and very accurate capacitance-to-digital converter interface, designed to be easily integrated with…

Contact Provider Request Datasheet
TSMC 180nm BCDG2 Silicon Proven View all specifications

Overview

The MVCT018 is a programmable and very accurate capacitance-to-digital converter interface, designed to be easily integrated with capacitive sensors. The chip features very fast measurement times, low operating power, and very low standby currents, making it very suitable for low power and portable applications. The ASIC includes a high-accuracy integrated temperature sensor that enables the user to compensate for temperature dependencies of sensor elements, as needed.

Temperature Range -40 to 125°C
Power Supply Voltage 1.71 to 3.6V
Input Capacitance Range 0.3 to 13pF
Temperature RMS Noise 0.01°C @ 14-Bit res.
Capacitance RMS Noise (1pF Input Range) 17aF @ 21-Bit res. with IIR filter turned OFF
4aF @ 21-Bit res. with IIR filter turned ON
Average Current for One Measurement/sec 15-Bit Capacitance: 0.72µA
14-Bit Temperature: 0.75µA
Ultra-low Standby Current 15nA
Outputs Digital I2C & 3-wire/4-wire SPI interfaces

Key features

  • Each channel has an independent trimmable input capacitance range, for flexibility and dynamic range optimization
  • On-chip processing engine for linearization and temperature compensation – provides end user with a fully calibrated output
  • Internal high-accuracy and low-drift temperature sensor
  • Programmable resolution settings (up to 21 Bits) for each mode
  • On-chip IIR filter for ultra low noise measurements
  • Programmable alarm and clipping functions
  • Supports 3-wire, 4-wire SPI, and I2C communication protocols

Block Diagram

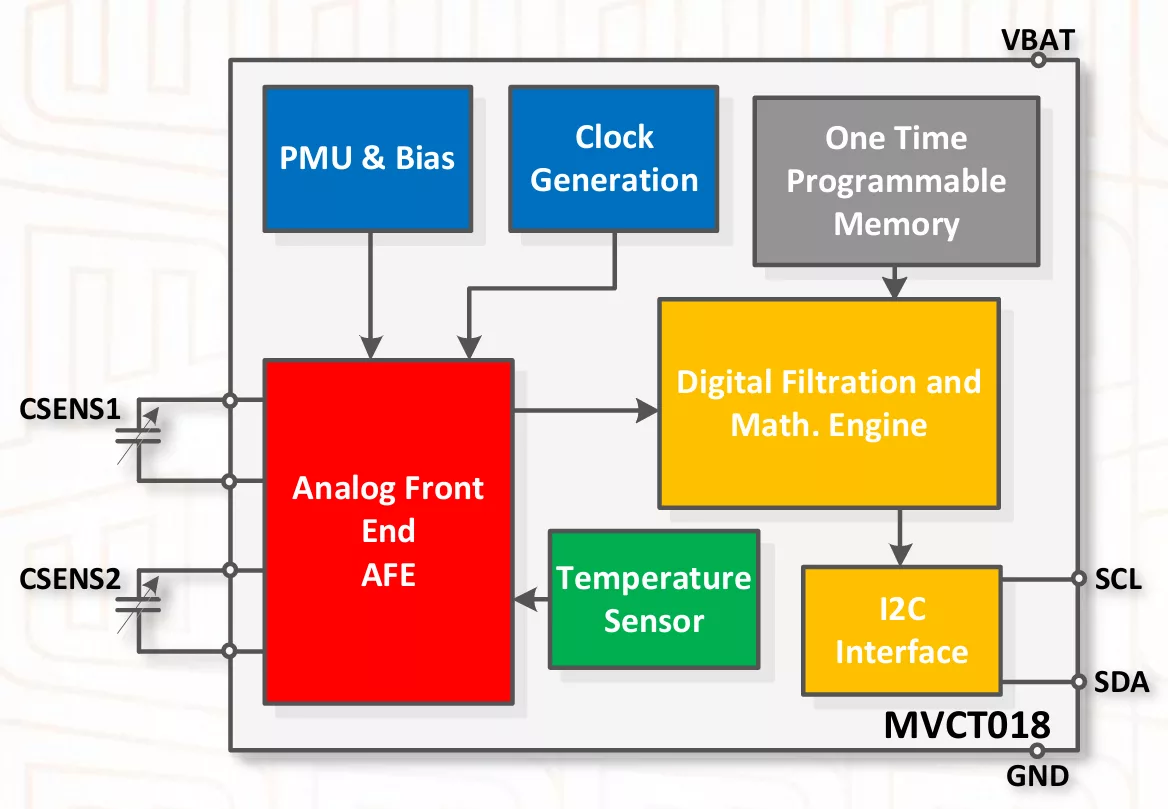

MVCT018 block diagram
