Vendor: HCL Technologies Category: MIPI

CSI2 RX; Camera Serial Interface, MIPI Compliant

The CSI2 Receiver IP Interfaces between Camera module which has the transmitter and the application processor.

Contact Provider Request Datasheet

Overview

The CSI2 Receiver IP Interfaces between Camera module which has the transmitter and the application processor. The CSI2 Receiver IP is fully compliant with the MIPI Alliance Specification for Camera Serial Interface 2 (CSI-2) Version 1.1 and D-PHY Version 1.1. The CSI2 Receiver IP supports flexible pixel interface where based on the data format the pixels are transferred to the application interface.

Key features

  • Supports up to 4-Data lanes
  • The Data lanes can be programmed to operate at 1 or 2 or 3 or 4 lanes
  • Each Data lane supports up to 1.5Gbps at High Speed mode and up to 20-MHz at Low power mode
  • Supports 4-virtual channel
  • Supports Camera control Interface for controlling the CSI2 Transmitter
    • Two wire, Bi directional and half duplex interface (SCLK, SDA), Supports 400KHz and 7-bit Slave addressing
  • Supports ECC -single bit Error correction and double bit error detection for packet headers
  • Supports CRC error checking for the payload
  • Supports the following error handling mechanism
    • D-PHY Layer Errors
    • ECC and CRC Errors
    • Frame Sync Errors
    • Invalid Data format
  • Supports High speed data, Ultra Low power (Escape mode) control and Low power data modes of operations

Block Diagram

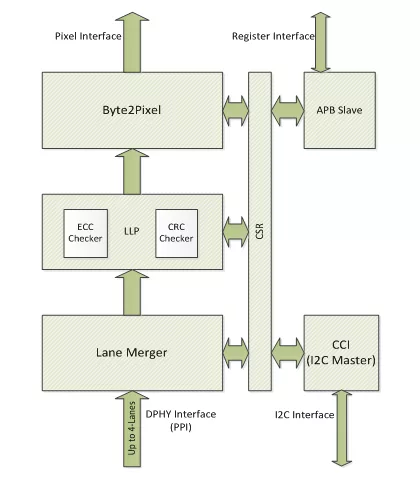

HCL CSI RX IP block diagram

What’s Included?

  • Source Code – Verilog HDL
  • Verification Environment
  • Synthesis Scripts
  • Timing Constraints
  • User Manual

Specifications

Identity

Part Number
HCL CSI RX IP
Vendor
HCL Technologies
Type
Silicon IP

Provider

HCL Technologies
HQ: India
