Vendor: T2M GmbH Category: Bluetooth

BLE v5.0 RF PHY KGD & IP

A RF Transceiver (IP/die) for adding Bluetooth Low Energy v5.2 (2.4GHz) capability to any SoC with embedded MCU via a standard SP…

Contact Provider Request Datasheet
TSMC 40nm G In Production View all specifications

Overview

A complete RF Transceiver (IP/die) for adding Bluetooth Low Energy v5.2 (2.4GHz) capability to any SoC with embedded MCU via a standard SPI interface.

Integrated BLE Link Layer enables data rates of 2Mbps for High Speed Bluetooth connectivity & Long Range for connection range of ~100 meters.

Standard SPI interface plus chip select & packet sync pins for interfacing to an MCU or SOC and accessing an integrated AES engine for data encryption/decryption. No external RAM, ROM or Flash is not required.

Low cost & simple upgrade to any embedded MCU system.

Key features

  • 2.4GHz RF Bluetooth Low Energy v5.2 Phy
  • BQB Bluetooth® 5 Low Energy Certified: RF PHY Component, Link Layer, Protocol Stack SW, MESH SW
  • Data Rate Supported: 2Mbps & 1Mbps
  • Integrated functionality: RF Transceiver + Modem Phy, CRC & AES-CCM HW security engine, Integrated DC-DC and LDO regulator, 16MHz / 32MHz XTAL, 32KHz XTAL
  • High TX Power: +10dBm
  • High RX sensitivity: -97dBm (1Mb/s PHY BER=0.1%)
  • Very Low Power Consumption: Standby & Deep Sleep functions
  • TSMC55 ULP

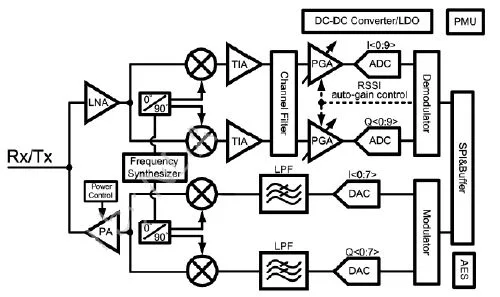

Block Diagram

BLE v5.0 RF KGD & IP block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 40nm G In Production

Specifications

Identity

Part Number
BLE v5.0 RF KGD & IP
Vendor
T2M GmbH

Provider

T2M GmbH
T2M GmbH is the leading Global Technology Company supplying state of the art complex semiconductor connectivity IPs and KGDs, enabling the creation of complex connected devices for Mobile, IoT and Wearable markets. T2M's unique SoC White Box IPs are the design database of mass production RF connectivity chips supporting standards including Wifi, BT, BLE, Zigbee, NFC, LTE, GSM, GNS. They are available in source code as well as KGD for SIP / modules. With offices in USA, Europe, China, Taiwan, South Korea, Japan, Singapore and India, T2M’s highly experienced team provides local support, accelerating product development and Time 2 Market.
