Band-Gap Voltage Reference with dual 2µA Current Source - X-FAB XT018

Contact Provider Request Datasheet

Overview

The TS_BG_02uA_X8 provides a 1.21V band-gap voltage reference as well as two 2µA current sources, from one supply voltage on VDDA5 (5V typical).

This IP is meant for strict on-chip usage. The minimum continuous operation lifetime spans 100000 hours.

Technology: X-FAB XT018-0.18µm BCD-on-SOI CMOS

OPERATING CONDITIONS

Parameters Values
Junction temperature range 0ºC to +80ºC
Supply voltage VDDA5: 4.9V to 5.1V
Voltage at I_2U1 and I_2U2 terminals 3V max

SPECIFICATION

Parameters Values
VBG voltage at TJ = 50°C 1.178V min, 1.210V typ, 1.233V max
Temperature coefficient, (𝑑𝑉 ⁄ 𝑑𝑇 )⁄ 𝑉𝐵𝐺 ±31ppm/°C
VBG PSRR over frequencies up to 10 MHz, VBG DC-level PSRR 17dB min, 105dB min
Operating power consumption with unused I_2U1 and I_2U2 204µW max
Area 0.024mm²

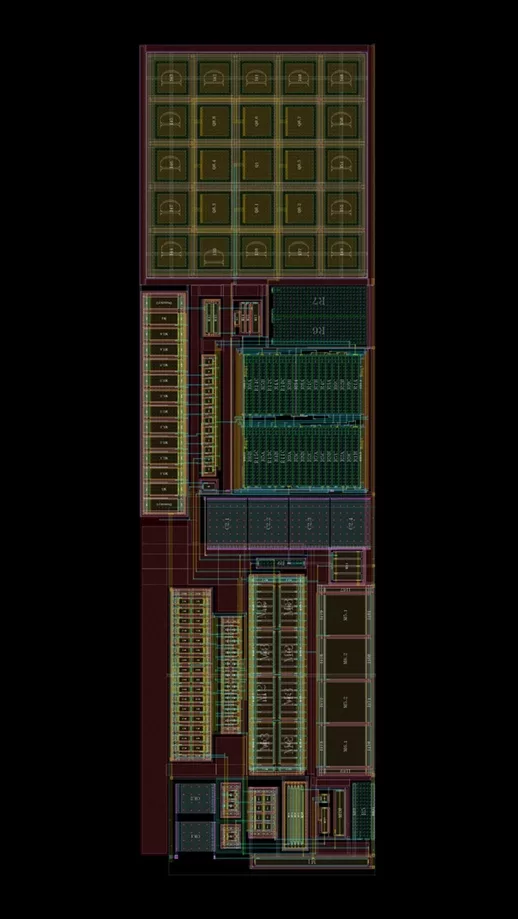

Block Diagram

Bandgap Circuit Symbol
1 / 2
Keyboard arrows: ← → • Enter: fullscreen • Esc: close

Files

Product Sheet https://www.tes-dst.com/fileadmin/user_upload/PDFs/data_sheet_Band-Gap.pdf Download
