Vendor: Dolphin Semiconductor Category: Audio Codec

95 dB of SNR, 16-24-bit stereo audio CODEC, with embedded regulator and differential cap-less headphone driver

Dolphin Design high-fidelity audio CODEC, sCODa95-H1-LR-D.04 combines a set of audio features and a small silicon footprint with …

Contact Provider Request Datasheet
SMIC 55nm LL Silicon Proven View all specifications

Overview

Dolphin Design high-fidelity audio CODEC, sCODa95-H1-LR-D.04 combines a complete set of audio features and a small silicon footprint with the best resilience to noise, for the new generation of Audio BT SoC at 55 nm.

Key features

  • PLL-less & Jerkless features on ADC and DAC, supports both MASTER and asynchronous SLAVE interface for an easy connection to a Bluetooth emitter / receiver
  • Embedded low noise Linear Regulator for best resilience to power supply noise
  • Cap-less differential headphone driver
  • Digital Mixer function with programmable gain
  • Automatic Gain Control

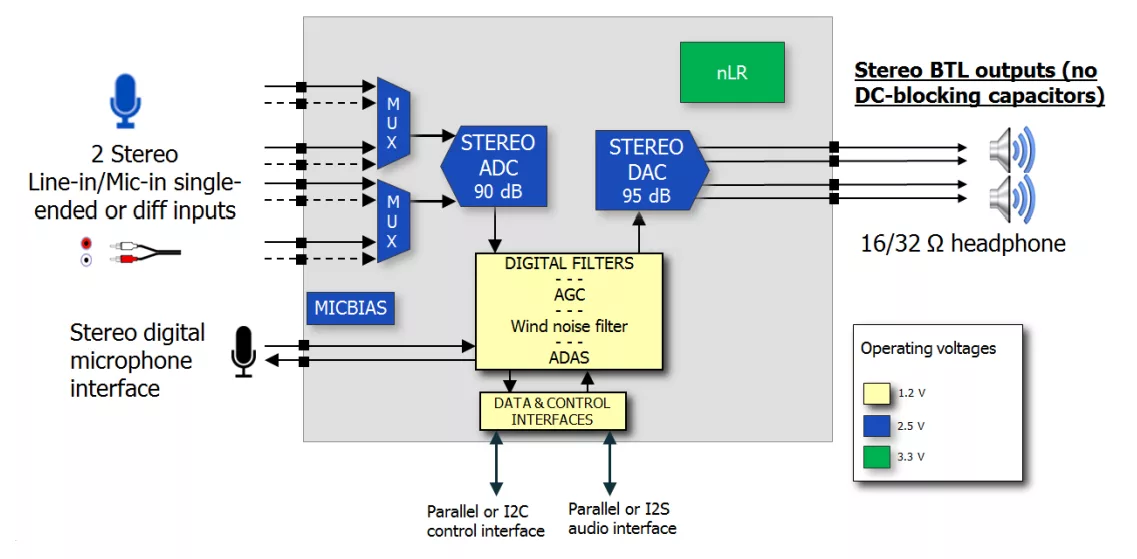

Block Diagram

sCODa95-H1-LR-D.04_SMIC_55_LL block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
SMIC 55nm LL Silicon Proven

Specifications

Identity

Part Number
sCODa95-H1-LR-D.04_SMIC_55_LL
Vendor
Dolphin Semiconductor

Provider

Dolphin Semiconductor
HQ: France
Dolphin Semiconductor is a leading provider of semiconductor IP solutions, specializing in mixed signal IP design targeting markets such as Industrial, High-Performance Computing, Consumer Electronics, IoT and Automotive. Dolphin Semiconductor cutting-edge technology IPs in power management, high-quality audio, power metering, and design safety/robustness, allow their customers to accelerate design cycles, foster faster time-to-market and build products that address the challenges of any industry and support a more sustainable world. With a customer-centric approach, Dolphin Semiconductor provides exceptional support for successful project outcomes.
