Vendor: iWave Systems Technologies Pvt. Ltd. Category: CPU

80188EB 16-bit microprocessor

The 80188EB is a 16-bit microprocessor core, executes instruction list compatible with 80188EB microprocessor.

Contact Provider Request Datasheet

Overview

The 80188EB is a powerful 16-bit microprocessor core, executes instruction
list compatible with 80188EB microprocessor. The 80188EB core has a broad
set of integrated peripherals, which helps reduce system development time and
cost and is compatible with wide range of compilers and debuggers. The
design along with multiple peripherals can be fit into single FPGA.

Key features

  • Multiplexed 20-bit address and 8-bit data bus
  • 1M-byte memory space divided into 4 segments
  • 64K-byte IO space
  • Non Maskable Interrupt support
  • Arithmetic-Logic Unit
  • 8,16,32-bit arithmetic operations
  • 8,16-bit logical operations
  • Boolean manipulations
  • 16 x 16 bit multiplication (signed or unsigned)
  • 32/16-bit division (signed or unsigned)
  • CPU On-Chip Peripherals
  • Programmable Timer / Counter Unit
  • Three programmable independent 16-bit timers
  • TOUT0 to TOUT1 pin outputs
  • TIN0 & TIN1 used either as clock or control signals
  • Timer-2 can be used to clock other two timers
  • Internal / external input clock selectable
  • Serial Communications Unit
  • RS-232-C protocol support (on-chip CTS_N, SINT_N pins)
  • Both synchronous and asynchronous modes are supported
  • Two independent identical channels
  • Full duplex operation in asynchronous mode

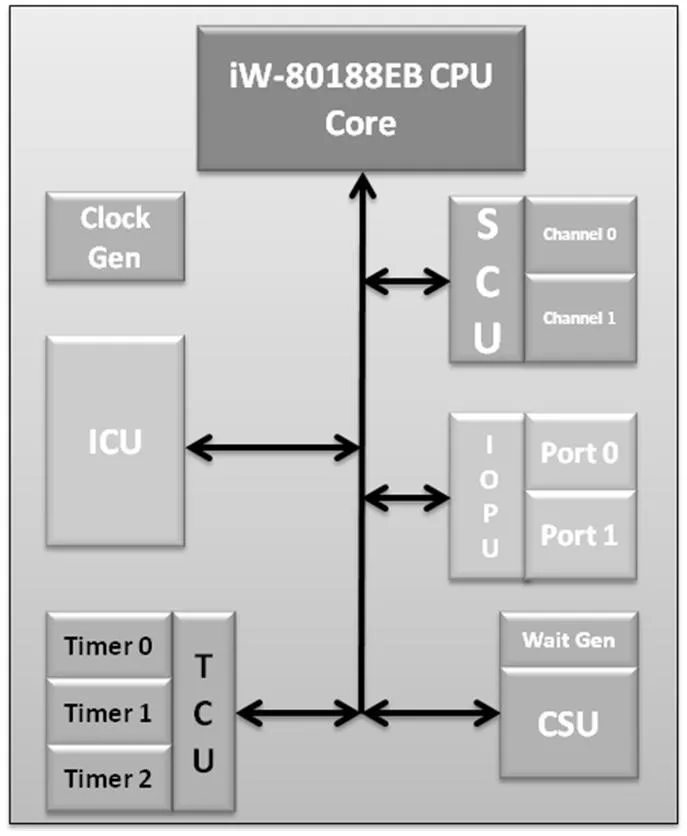

Block Diagram

80188EB Processor block diagram

Benefits

  • Compatible with Intel 80188EB instruction set
  • High FPGA integration enables lower BOM cost and smaller board design
  • Supports retarget and merge external peripherals and traditional custom old ASICs
  • Enhancements of system performance with increased operating frequency and integration

Applications

  • Typical processor applications such as industrial, Automotive, Medical etc.
  • Legacy platforms with obsolete components can be converted to new FPGA board

What’s Included?

  • Design Document
  • Verilog RTL or Netlist Source code
  • Test Bench
  • IP User Guide

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
80188EB Processor
Vendor
iWave Systems Technologies Pvt. Ltd.
Type
Silicon IP

Provider

iWave Systems Technologies Pvt. Ltd.
HQ: India
iWave Systems is a technology oriented organization founded in 1999 by enterprising technocrats, each with two decades of experience in the areas of Hardware and Embedded Software. We are an International design house with an energetic team of professionals with extensive experience in engineering real time embedded Systems. iWave Systems is poised to empower today's technology demands with appropriate, custom designed embedded system solutions. Our focus is in providing effective and efficient solutions to our customers at an optimal cost with an accelerated time-to-market. We help our customers worldwide to explore and leverage the state of the art technologies and achieve excellence in their business objectives.
