Vendor: iWave Systems Technologies Pvt. Ltd. Category: CPU

80186XL 16-bit microprocessor

The 80186XL is a 16-bit microprocessor core, executes instruction list compatible with 80186XL microprocessor.

Contact Provider Request Datasheet

Overview

The 80186XL is a powerful 16-bit microprocessor core, executes instruction list compatible with 80186XL microprocessor. The 80186XL core has a broad set of integrated peripherals, which helps reduce system development time and cost and is compatible with wide range of compilers and debuggers. The design along with multiple peripherals can be fit into single FPGA.

Key features

  • Programmable Timer / Counter Unit
  • Three programmable independent 16-bit timers
  • Internal / external input clock selectable
  • Direct Memory Access Unit
  • Two independent high-speed DMA channels
  • Data can be transferred between any combination of memory & IO space
  • DMA transfer can be initiated by external,internal request or by direct programming
  • Both byte & word transfer is possible in case of 80186XL

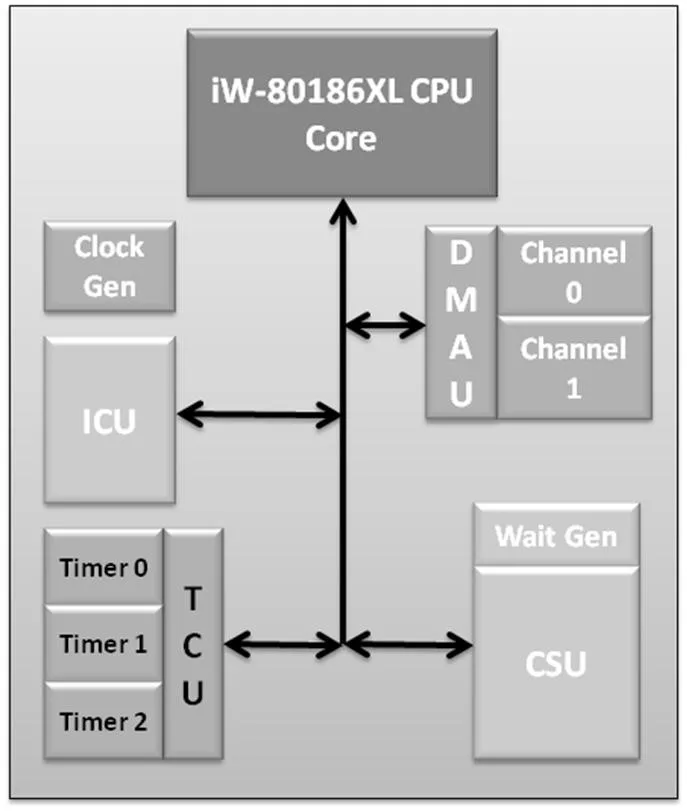

Block Diagram

80186XL Processor block diagram

Benefits

  • Compatible with Intel 80186XL instruction set
  • High FPGA integration enables lower BOM cost and smaller board design
  • Supports retarget and merge external peripherals and traditional custom old ASICs
  • Enhancements of system performance with increased operating frequency and integration

Applications

  • Typical processor applications such as industrial, Automotive, Medical etc
  • Legacy platforms with obsolete components can be converted to new FPGA board

What’s Included?

  • -

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
80186XL Processor
Vendor
iWave Systems Technologies Pvt. Ltd.
Type
Silicon IP

Provider

iWave Systems Technologies Pvt. Ltd.
HQ: India
iWave Systems is a technology oriented organization founded in 1999 by enterprising technocrats, each with two decades of experience in the areas of Hardware and Embedded Software. We are an International design house with an energetic team of professionals with extensive experience in engineering real time embedded Systems. iWave Systems is poised to empower today's technology demands with appropriate, custom designed embedded system solutions. Our focus is in providing effective and efficient solutions to our customers at an optimal cost with an accelerated time-to-market. We help our customers worldwide to explore and leverage the state of the art technologies and achieve excellence in their business objectives.
