Vendor: Agile Analog Category: ADC

8/10-bit Analog-to-Digital Converter

The agileADC Analog-to-Digital Converter is a traditional Charge-Redistribution SAR ADC that is referenced to VDD, VSS.

Overview

The agileADC Analog-to-Digital Converter is a traditional Charge-Redistribution SAR ADC that is referenced to VDD, VSS. The architecture can achieve up to 10-bit resolution at sample rates up to 20 MSps. It includes an eight-channel input multiplexor. Some inputs will be buffered inside the ADC, whereas others will bypass the buffer and be connected directly to the ADC to provide full rail-to-rail capability.

Agile Analog designs are based on tried and tested architectures to ensure reliability and functionality. Our design methodology is programmatic, systematic and repeatable leading to analog IP that is more verifiable, more robust and more reliable. Our methodology also allows us to quickly re-target our IP to different process options. We support all the major foundries including TSMC, GlobalFoundries, Intel Foundry, Samsung Foundry, UMC and Other Foundries.

Key features

  • Resolution: 8b, 10b
  • Sampling Rate (Fs): 1 Msps to 20Msps
  • Input Signal Bandwidth: Fs/2
  • SINAD1: Typ 54dB
  • SFDR1: Typ -60dBc
  • CMRR2: min 65dB
  • PSSR1: Typ 30dB
  • Monotonic and no missing codes
  • Customisable design for simple SoC integration
  • Integrated Calibration Mode

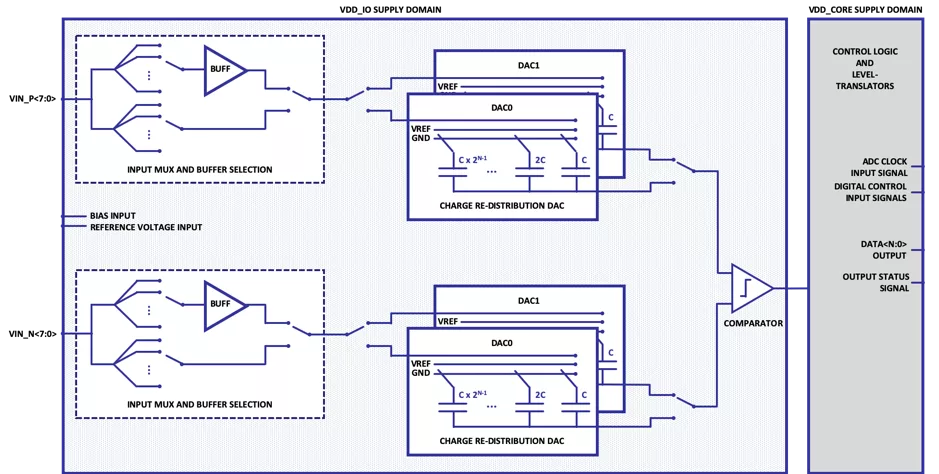

Block Diagram

Benefits

  • DFT/DFM
  • - AMBA-APB Interface to simply test and operation
  • - Incorporated Trim and Calibration to facilitate process and/or manufacturing offsets to be adjusted
  • - Built-in test mode
  • Configurable Inputs
  • - Up to 8 input channels
  • - Buffer or unbuffered
  • - Differential or Single-ended
  • - Rail-to-Rail input

Applications

  • IoT, Security, Automotive, AI, SoCs, ASICs

What’s Included?

  • Datasheet
  • Testing and Integration Guide
  • Verilog Models
  • Floorplan (LEF)
  • Timing models (LIB)
  • Netlist (CDL)
  • Layout (GDS)
  • Physical Verification Report
  • Design Report

Files

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
agileADC
Vendor
Agile Analog
Type
Silicon IP

Analog

Resolution bits
8 Bit

Provider

Agile Analog
HQ: United Kingdom
Agile Analog is transforming the world of analog IP with Composa™, its innovative, configurable, multi-process analog IP technology. Headquartered in Cambridge, UK, with a growing number of partners and customers across the globe, Agile Analog has developed a unique way to automatically generate analog IP that meet the customer’s exact specifications on almost any process from any foundry. The company provides a wide and ever expanding selection of analog IP and subsystems for power management, data conversion, IC health and monitoring, security and always-on domains. Agile Analog's novel approach utilises tried and tested analog circuits within its Composa library to create customised and verified analog IP solutions. This reduces the time to market and increases quality, helping to accelerate innovation in semiconductor design.
