4G LTE eNodeB baseband
This 3GPP LTE IP (compliant to release 9) eNodeB PHY Baseband and MAC-PHY API.
Overview
This 3GPP LTE IP (compliant to release 9) eNodeB PHY Baseband and MAC-PHY API. The PHY baseband covers all Downlink Transmitter and Uplink Receiver Physical Channels, Libraries, Algorithms integrated with cross-functional logic as a single PHY solution and interfaced with MAC-PHY API for a seamless integration with 3rd party eNodeB Protocol Stack. The algorithms are optimized and tested with standard 3rd party tier-1 IQ test vectors, test scenarios and interoperated in real-time with UE through RF interface. The DL algorithms have been tested with 3GPP LTE Channel and propagation models for uplink receiver algorithms as per EPA, EVA and ETU for Doppler frequency 5-300Hz as defined by TS36.101 Annexure-B.
The solution is ideally suited for eNodeB OEM, ODM, eNodeB Test-tool vendors and proprietary 4G system developers.
The IP supports the customization of the solution to target platforms like ASIP, DSP and FPGA. Business Features
The solution is ideally suited for eNodeB OEM, ODM, eNodeB Test-tool vendors and proprietary 4G system developers.
The IP supports the customization of the solution to target platforms like ASIP, DSP and FPGA. Business Features
Block Diagram
4G LTE eNodeB baseband block diagram

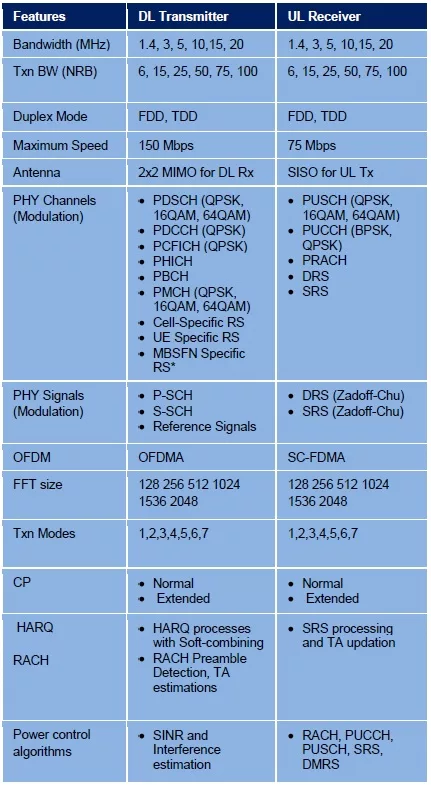

Specifications
Identity
Part Number
4G LTE eNodeB baseband
Vendor
T2M GmbH
Type
Silicon IP
Provider
T2M GmbH
T2M GmbH is the leading Global Technology Company supplying state of the art complex semiconductor connectivity IPs and KGDs, enabling the creation of complex connected devices for Mobile, IoT and Wearable markets.
T2M's unique SoC White Box IPs are the design database of mass production RF connectivity chips supporting standards including Wifi, BT, BLE, Zigbee, NFC, LTE, GSM, GNS. They are available in source code as well as KGD for SIP / modules.
With offices in USA, Europe, China, Taiwan, South Korea, Japan, Singapore and India, T2M’s highly experienced team provides local support, accelerating product development and Time 2 Market.
