Vendor: TES Electronic Solutions Category: CAN / CAN-FD / CAN-XL

3.3V CAN Transceiver

The TS_CAN_3V3_X8 is a 3.3V CAN transceiver, which supports data rates up to 1Mbps and is compatible with ISO 11898-2 compliant C…

Contact Provider Request Datasheet

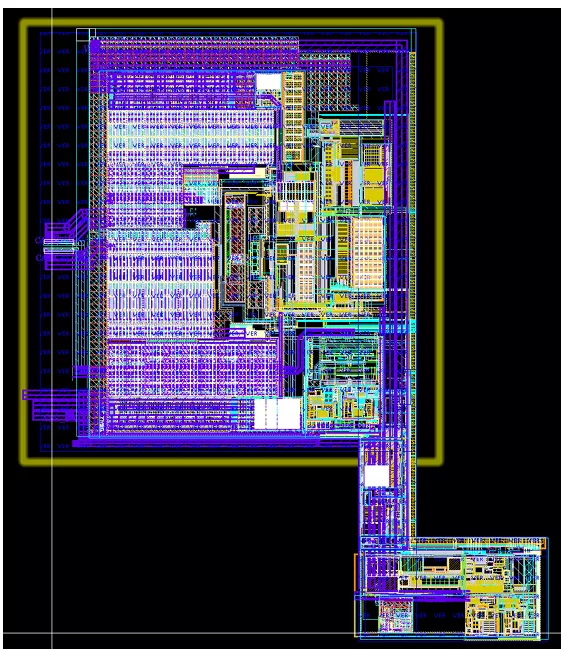

Overview

The TS_CAN_3V3_X8 is a 3.3V CAN transceiver, which supports data rates up to 1Mbps and is compatible with ISO 11898-2 compliant CAN transceivers. It supports a standby mode with wake up via wake-up pattern. The TS_CAN_3V3_X8 provides a symmetrical output signal on CANL/CANH and incorporates slope-control to improve EMI performance. Power is supplied at 3.3 V, and the IP includes reference and biasing circuits. The output stage can handle an absolute maximum voltage range of +/-58 V.

Operating conditions

Parameters Values
Junction temperature range -40°C to 150°C
Supply voltage 3.2V to 3.4V
CAN bus common mode voltage range (functional state) -15V to 15V

Specification

Parameters Values
Dominant supply current in normal mode 56mA max
Recessive supply current in normal mode 5.5mA max
Supply current in standby mode 4µA max
CANH/CANL recessive output voltage in normal mode 1.8V typical
Dominant differential output voltage in normal mode, (CANH-CANL) 1.9V typical
Recessive differential output voltage in normal mode, (CANH-CANL) 10mV max
Maximum output data rate 1Mbaud
Driver symmetry 0.9V/V to 1.1V/V

Block Diagram

TS_CAN_3V3_X8 block diagram

What’s Included?

  • GDSII
  • Detailed integration manual
  • Optional Cadence database

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
