CAN XL Verification IP

The CAN XL Verification IP provides an effective & efficient way to verify the CAN components of an IP or SoC.

Contact Provider Request Datasheet

Overview

The CAN XL Verification IP provides an effective & efficient way to verify the CAN components of an IP or SoC. The CAN XL VIP is fully compliant with CAN XL specifications (CiA 610-1, CiA 610-3, 11898-1 2024, 11898-2 2024, CiA 611-1). The VIP is light weight with easy plug-and-play components so that there is no hit on the design cycle time.

Key features

  • Adherent to CAN XL (CiA 610-1, CiA 610-3, 11898-1 2024, 11898-2 2024, CiA 611-1).
  • Supports backward compatibility with both CAN 2.0 (Part A & B Specification) and CAN FD (BOSCH and ISO-11898-1)
  • Supports test cases as per conformance test suite (CTS)
    • Standard ISO/DIS 16845-1 and 16845-2
    • CiA 610-2 and CiA 610-4
  • Supports all types of frames :
    • Standard and Extended Data frames
    • Standard and Extended Remote frames
    • Error frames
    • Overload frames
    • FD Base Format Frame
    • FD Extended Format Frame
    • CAN XL Frame Format (XLFF)
  • Support Payload size up to 2048 bytes
  • Support Data Rate up to 20 Mbit/s
  • Supports Time Triggered as per ISO 11898 Part 4 specification
  • Callbacks in node transmitter, receiver and monitor for user processing of data.
  • Complete CAN Tx/Rx functionality.
  • Tracks TEC/REC error counter and fault states.
  • Supports Full Duplex of operations.
  • Supports constraints Randomization.
  • Remote frame support
    • Automatic transmission after reception of remote transmission request (RTR).
    • Automatic receive after transmission of an RTR.
  • Supports all types of error insertion and detection.
    • Bit errors
    • Stuff errors
    • CRC errors
    • Form errors
  • Acknowledgement errors
  • Supports Glitch insertion and detection.
  • Functional coverage for complete CAN features.
  • Re-transmission of corrupted messages.
  • Monitors, detects and notifies the testbench of significant events such as transactions, warnings, timing and protocol violations
  • Status counters for various events on bus.

Block Diagram

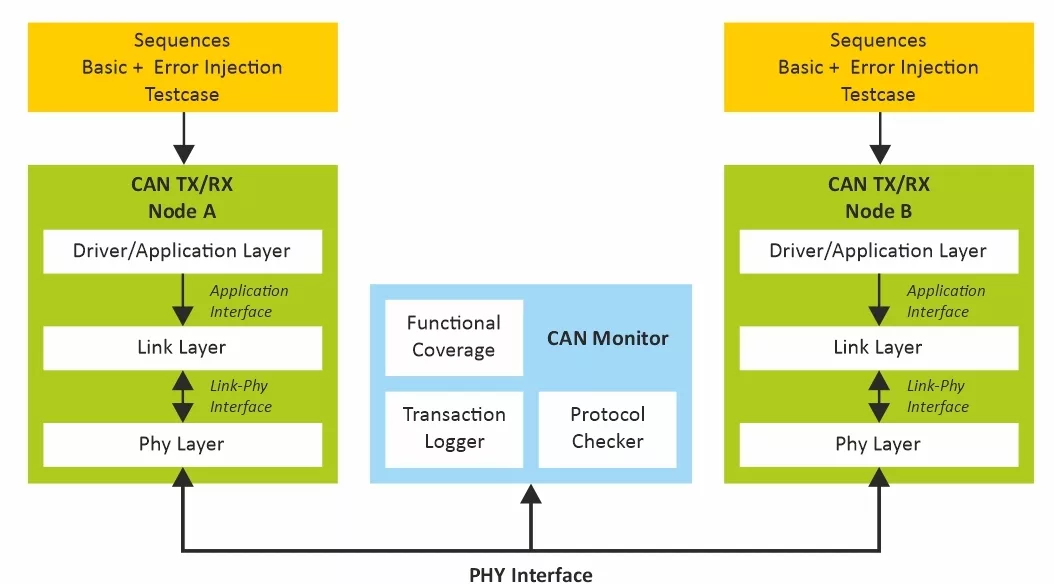

CAN XL block diagram

Benefits

  • Available in native SystemVerilog (UVM/OVM/VMM) and Verilog.
  • Unique development methodology to ensure the highest levels of quality.
  • Availability of various Regression Test Suites.
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and cover points with connectivity examples for all the components.
  • Consistency of interface, installation, operation, and documentation across all our VIPs.
  • Provide complete solutions and easy integration in IP and SoC environments.

What’s Included?

  • CAN Tx/Rx/BFM/Agent
  • CAN Monitor
  • CAN Scoreboard
  • Testbench Configurations
  • Test Suite (Available in Source code)
    • Basic and Directed Protocol Tests
    • Random Tests
    • Error Scenario Tests
    • Assertions & Cover Point Tests
  • Integration Guide, User Manual and Release Notes

Files

Product Sheet Download
