Vendor: NTLab Category: DC/DC Converter

3.3 - 4.2V to -3.7V step-down DC/DC converter

180XFAB_DCDC_05 is capable to generate -4.2V ÷ -3.3V (-3.7V typical value) voltage and can maintain 50uA load for -3.7V output.

Contact Provider Request Datasheet

Overview

180XFAB_DCDC_05 is capable to generate -4.2V ÷ -3.3V (-3.7V typical value) voltage and can maintain 50uA load for -3.7V output. The block consists of OTA and transistor-capacitive multiplier cells. The DC/DC is used for forming negative supply. Upon power-up to typical 3.7V voltage at the fully charged 100nF output capacitor connected, slew rate of output voltage will be limited of the internal frequency correction circuits and is approximately 4.3 V/us. Start-up time is increased with increasing capacitor nominal value proportionally.

Key features

  • XFAB XT018
  • Input Voltage Range: 3.3V to 4.2V
  • Output Voltage: minus input voltage

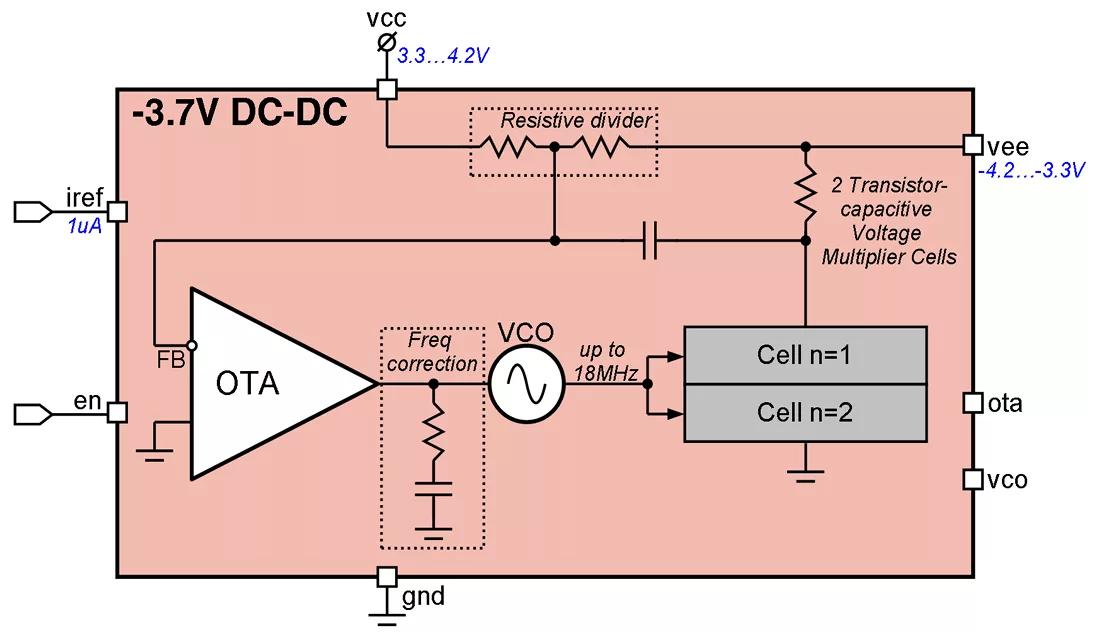

Block Diagram

180XFAB_DCDC_05 block diagram

Applications

  • Low-Voltage, High-Density Systems
  • Broadband, Networking, and Optical Communications Infrastructure

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
180XFAB_DCDC_05
Vendor
NTLab

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
Contact NTLab
