Vendor: NTLab Category: High-Speed

3.125 Gbps DDR 1-channel CML transmitter

065TSMC_CML_02 core logic interface includes signal pins (INP1, INP2 and INN1, INN2) for data transmission, control pin EN_TX to …

Contact Provider Request Datasheet
TSMC 65nm GP Silicon Proven View all specifications

Overview

065TSMC_CML_02 core logic interface includes signal pins (INP1, INP2 and INN1, INN2) for data transmission, control pin EN_TX to configure transmitter state and control pin EN_PR to toggle pre-emphasis mode. Data on signal pins INP2 and INN2 should be one bit shifted (delayed) from that on INP1 and INN1 for pre-emphasis purposes. Differential CML output pins PAD_OUTP and PAD_OUTN should be connected to bonding pads.

Key features

  • TSMC CMOS 0.065 um
  • 1.2 V digital power supply
  • 1.2 V CMOS output logic signals
  • 8-step (3-bit) adjustable transmitter output current (range from 4 mA to 32 mA)
  • 3.125 Gbps (DDR MODE) switching rates
  • Temperature range: -40 °C to + 125 °C
  • Optimized for pad-limited layout design
  • Portable to other technologies (upon request)

Block Diagram

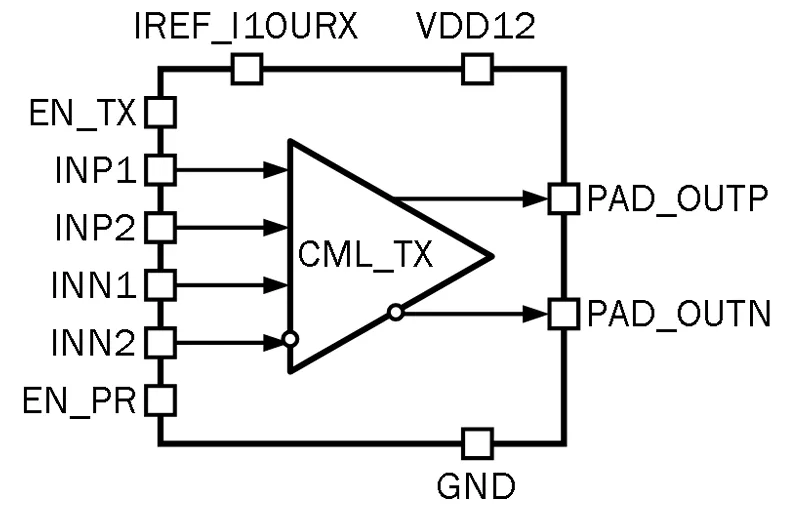

065TSMC_CML_02 block diagram

Applications

  • Point-to-point data transmission
  • Multidrop buses
  • Clock distribution
  • Backplane receiver
  • Backplane data transmission
  • Cable data transmission

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 65nm GP Silicon Proven

Specifications

Identity

Part Number
065TSMC_CML_02
Vendor
NTLab

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
