120dB PDM-to-PCM Digital Microphone Interface

The AR36T05 is a soft macro low-power high-performance digital microphone interface modulator IP.

Contact Provider Request Datasheet
TSMC 28nm In Production View all specifications

Overview

The AR36T05 is a soft macro low-power high-performance digital microphone interface modulator IP. The IP converts stereo/mono 1-bit pulse-density modulated (PDM) bit stream data from external digital microphones into 16-24bit pulse-code modulated (PCM) data for base-band processing. It is expandable to multi-channel system for various voice and audio applications.

The IP is portable to any logic process node for silicon realization. It is now silicon-proven in TSMC 16nm and 28nm logic processes.

Key features

  • SNR 122dB; DR 121dB
  • PDM (pulse-density modulated) Input
  • PCM (pulse-code modulated) output
  • Support PDM_CLK rates of 0.512MHz~8.64MHz
  • Support left /right mono mode, stereo mode
  • Sampling Rate: 8K-96KHz, upgrade to higher Fs
  • PGA Gain: Tunable with a wide range, 0.75dB/Step
  • Soft gain tuning
  • Soft mute
  • Digital audio interface (master & slave)
  • DAI data format: I2S, Left-justified, PCM
  • Control Interface: Register / I2C, APB/MCU bus

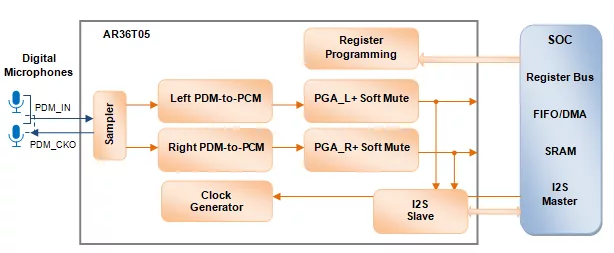

Block Diagram

AR36T05 block diagram

Benefits

  • Easy Integration
  • Quick Time-to-Market
  • Reduced R&D Cost
  • Enhance 1st Tape Out Success
  • Differentiated SoC Solution
  • Early Market Penetration

Applications

  • Machine Learning / Voice Recognition System
  • IoT System and Node
  • Smart Wearable Devices
  • Smart Voice/Audio Home Appliance
  • Portable Media
  • VR/AR/MR System
  • Surveillance System

What’s Included?

  • Full Datasheet
  • Test Plan
  • Synthesized Gate Netlist or RTL
  • Timing Constraint (.sdc)
  • Test Benches and Test Vectors
  • Integration Support
  • Silicon Validation & AE support

Silicon Options

Foundry Node Process Maturity
TSMC 28nm 28nm 280 nm In Production

Specifications

Identity

Part Number
AR36T05
Vendor
Archband Labs Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Archband Labs Inc.
HQ: USA
