Overview

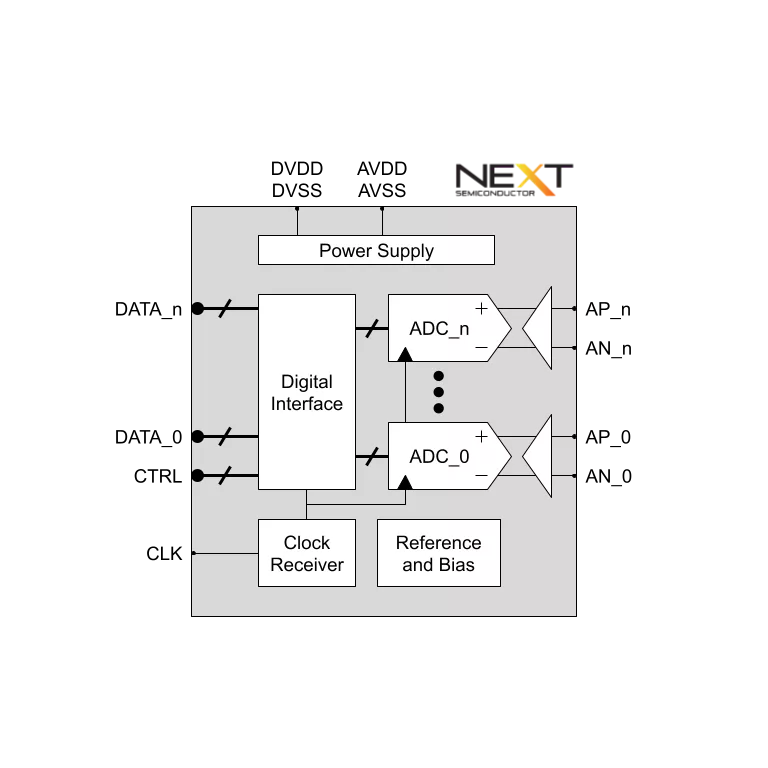

Unleash the power of precision and innovation with the NS_RX_12G_T16, a state-of-the-art 12-bit, 12-Gsps Analog-to-Digital Converter (ADC).
This cutting-edge product redefines ADC architectures with its patented Digital Data Conversion technology leveraging time-domain signal processing, ensuring immunity to patent litigation associated with traditional Pipeline and SAR ADC architectures offered by competitors, just do your research.
The NS_RX_12G_T16 is your gateway to enhanced data acquisition capabilities, enabling you to directly sample RF to 10-GHz with self-calibrated precision and proven high volume reliability.
Learn more about ADC IP core
