105dB PCM-to-PDM Stereo Converter

The AR37T01 is a digitally coded stereo PCM-to-PDM conversion IP with 8-bit pattern-code programming.

Contact Provider Request Datasheet
TSMC 28nm In Production View all specifications

Overview

The AR37T01 is a digitally coded stereo PCM-to-PDM conversion IP with 8-bit pattern-code programming.

The IP translates parallel PCM input data into single-bit digital switching pulse-density modulated (PDM) output. The IP converts stereo audio data through ?? modulator and filters. The 1-bit PDM output can drive off-chip stand-alone PDM-type amplifier with high power-efficiency.

The IP is portable to any logic process node for silicon realization. It is now silicon-proven in TSMC16nm and 28nm logic processes.

Key features

  • SNR 105dB
  • PCM (pulse-code modulated) Input
  • PDM (pulse-density modulated) Output
  • PDM switching rate: 3.072MHz
  • Sampling Rate: 8K-96KHz, upgrade to higher Fs
  • PGA Gain: Tunable with a wide range, 0.75dB/Step
  • Soft gain tuning
  • Soft mute
  • Anti-pop Click
  • I2S Digital audio interface (master & slave)
  • Control Interface: Register / I2C, APB/MCU bus

Block Diagram

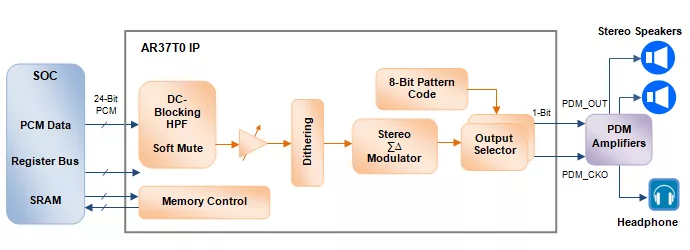

AR37T01 block diagram

Benefits

  • Easy Integration
  • Quick Time-to-Market
  • Reduced R&D Cost
  • Enhance 1st Tape Out Success
  • Differentiated SoC Solution
  • Early Market Penetration

Applications

  • IoT System and Node
  • Machine Learning
  • Smart Wearable Devices
  • Smart Voice/Audio Home Appliance
  • Portable Media
  • VR/AR/MR System
  • Surveillance System

What’s Included?

  • Full Datasheet
  • Test Plan
  • Synthesized Gate Netlist or RTL
  • Timing Constraint (.sdc)
  • Test Benches and Test Vectors
  • Integration Support
  • Silicon Validation & AE support

Silicon Options

Foundry Node Process Maturity
TSMC 28nm 28nm 280 nm In Production

Specifications

Identity

Part Number
AR37T01
Vendor
Archband Labs Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Archband Labs Inc.
HQ: USA
