Power-On Reset - Threshold (1.6V­1.8V), Low Current (1.5µA) - Silterra 0.18 um

This macro-cell is a low consumption Power-On Reset (POR) core designed for SilTerra 0.18μm CL180GH5 5V CMOS technology.

Contact Provider Request Datasheet
Silterra 180nm G Silicon Proven View all specifications

Overview

This macro-cell is a low consumption Power-On Reset (POR) core designed for SilTerra 0.18μm CL180GH5 5V CMOS technology.

The threshold sensing voltage ranges from 1.6V to 1.8V (default is 1.65V). A hysteresis of 100mV is added to avoid false reset glitches in noisy supplies.

The POR requires an 1.2V temperature compensated bandgap voltage and 240nA current reference, which can be implemented using CM1215ff IP.

The core is easily retargeted to any other 5V CMOS technology.

Key features

  • Supply voltage: 5.0V
  • Assertion threshold: (1.6V– 1.8V)
  • Hysteresis: 100mV
  • Current consumption:<1.5µA
  • Temperature range:-40°C– 125°C

Block Diagram

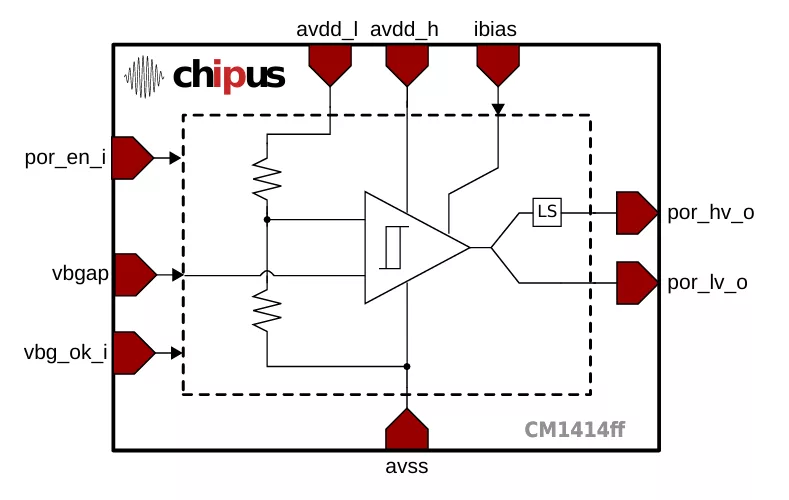

CM1414ff block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
Silterra 180nm G Silicon Proven

Specifications

Identity

Part Number
CM1414ff
Vendor
Chipus Microelectronics
Type
Silicon IP

Provider

Chipus Microelectronics
HQ: Brazil
