NB-IoT IP
The narrowband Internet of Things (NB-IoT) technology supports the Cat-NB1 standard defined by the International Organization for…
Overview
The narrowband Internet of Things (NB-IoT) technology supports the Cat-NB1 standard defined by the International Organization for Standardization (3GPP) and allows wide area low-power IoT communications. It mainly includes RF transceivers and digital baseband RF transceiver is implemented with the FD-SOI 22nm process to achieve low-power and high-performance design. Baseband implements the physical layer functionality together with ZSP core of Verisilicon. By integrating with software of PHY and protocol stack running on ZSP, it composes NB-IoT modem as a whole.
Key features
- Process Technology: GLOBALFOUNDRIES 22nmFDX
- Operation voltage: core 0.8v, I/O 1.8v
- Frequency band: 699~960MHz
- Implement NB-IoT functions of 36.211/212/213
- Comply with 3GPP 36.101 specification for Cat-NB1/NB2
- Operating junction temperature: -40°C to 85°C
- Support 26MHz XO
- Silicon-proven for whole modem system

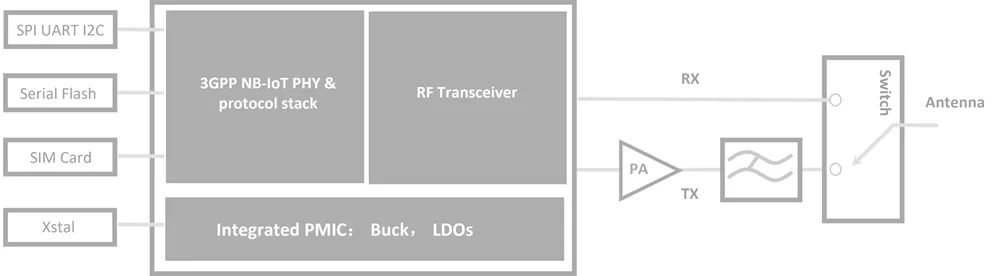

Block Diagram
What’s Included?
- Design Kit & Tape-out Kit
- IP Datasheet and Application
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | Silicon Proven |
