LTE Release-10 Baseband Protocol Stack (L2-L3) SW IP
This is a 3GPP Release 10 compliant LTE eNodeB Protocol Stack SW IP, which is a Macro cell LTE available for commercial deploymen…
Overview
This is a 3GPP Release 10 compliant LTE eNodeB Protocol Stack SW IP, which is a Macro cell LTE available for commercial deployment of LTE Networks and manufacturing.
Below is the Software specification for the LTE e-nodeB
Up to 300 active users supported
2x2 MIMO, 4x2 MIMO and 4x4 MIMO
1.4, 3, 5, 10 and 20 MHz bandwidth support
TDD/ FDD Support
Modulation supported: QPSK, QAM16 and QAM64 (only DL)
Peak Data Rate: 300 Mbps in DL and 50 Mbps in UL.
QoS: Supports 3GPP specified QoS Class Identifier.
The solution includes an interactive configuration tool with which user can manage all standard configurations. There is also an integrated GUI to manage multiple NIB/ e-NodeB, configure them and display KPIs from each of them. The solution supports SNMPv3 to integrate with NMS tool to enable monitoring and configuration management.
Below is the Software specification for the LTE e-nodeB
Up to 300 active users supported
2x2 MIMO, 4x2 MIMO and 4x4 MIMO
1.4, 3, 5, 10 and 20 MHz bandwidth support
TDD/ FDD Support
Modulation supported: QPSK, QAM16 and QAM64 (only DL)
Peak Data Rate: 300 Mbps in DL and 50 Mbps in UL.
QoS: Supports 3GPP specified QoS Class Identifier.
The solution includes an interactive configuration tool with which user can manage all standard configurations. There is also an integrated GUI to manage multiple NIB/ e-NodeB, configure them and display KPIs from each of them. The solution supports SNMPv3 to integrate with NMS tool to enable monitoring and configuration management.
Key features
- Modular design with low power radio module that supports all LTE bands.
- Radio front end available for Band 28, Band 7, Band 40
- Hardware capable of single or 3 sector operation.
- Interoperated with majority of the UE chip vendors.
- NLOS deployment.
- Carrier Aggregation up to two 20MHz carriers

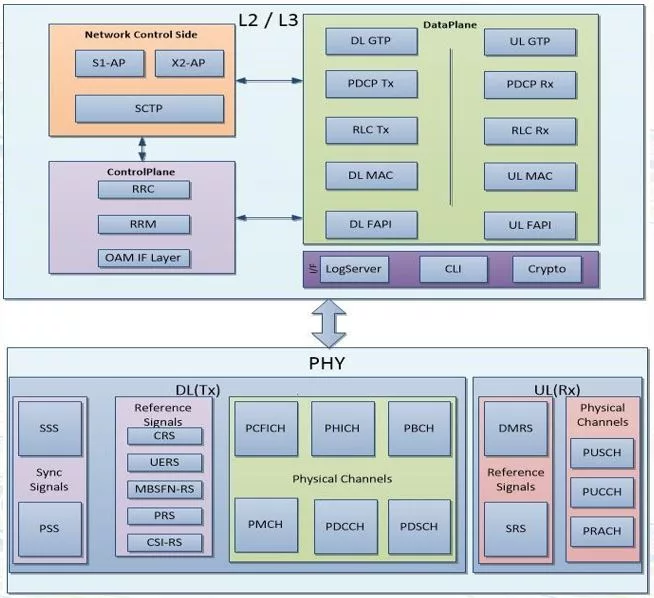

Block Diagram
LTE Rel-10 e-NodeB Protocol Stack SW IP block diagram
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
LTE Rel-10 e-NodeB Protocol Stack SW IP
Vendor
T2M GmbH
Provider
T2M GmbH
T2M GmbH is the leading Global Technology Company supplying state of the art complex semiconductor connectivity IPs and KGDs, enabling the creation of complex connected devices for Mobile, IoT and Wearable markets.
T2M's unique SoC White Box IPs are the design database of mass production RF connectivity chips supporting standards including Wifi, BT, BLE, Zigbee, NFC, LTE, GSM, GNS. They are available in source code as well as KGD for SIP / modules.
With offices in USA, Europe, China, Taiwan, South Korea, Japan, Singapore and India, T2M’s highly experienced team provides local support, accelerating product development and Time 2 Market.
