Low Power Memory Compiler - Single Port SRAM - GF 22nm FDX
Natively designed to be ultra-low power, this memory leverages body biasing to reduce static power consumption, meeting the strin…
Overview
Natively designed to be ultra-low power, this memory leverages body biasing to reduce static power consumption, meeting the stringent power requirements of IoT, BLE, and automotive applications.
Energy Efficient Solution for GF 22nm FDX®
- Compatible with Industry Adaptive Body Biasing IP
- Body Biasing functionality (-2.0 V /+2.0 V) to reduce leakage at the same supply level
- Part of the Silvaco GF 22nm FDX®-PLUS IP portfolio
Key features
- Optimized power supply solution
- Active usage of body bias to achieve optimal power and performance
- Dual rail operation
- Logic: 0.65 V +/-10% or 0.8 V +/-10%
- Array: 0.8 V +/-10%
- FD-SOI optimized
- Tunable performance: power/speed optimization through adaptive or pre-set body biasing
- Leakage is lowered due to insulator layer
- Lower variability across die due to lower doping effort
- Optimized Architecture
- Several low power modes for optimized saving
- Flexible integration
- Fully functional without Body Biasing
- Compatible with any Body Biasing generator
- Other Features
- Embedded retention and shut-down switches
- Variable Write Mask

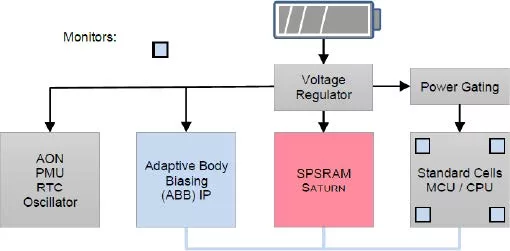

Block Diagram
Low Power Memory Compiler - Single Port SRAM - GF 22nm FDX block diagram
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
Low Power Memory Compiler - Single Port SRAM - GF 22nm FDX
Vendor
Silvaco, Inc.
Provider
Silvaco, Inc.
HQ:
United States
Silvaco focuses on enabling the next generation of AI/ML, Cloud/Datacenter, Automotive and Autonomous Driving, IoT and 5G designs through a comprehensive offering of Silicon proven IP. Our portfolio includes a complete catalog of Interface IP, Amba Peripherals, Subsystems, MIPI IP and Automotive Communication Controller IP. Our experienced ASIC and Embedded Software designers have a rich history of designing SOCs with embedded microprocessors which are crucial to building small connected smart chips.
