Linear Li-Ion Battery Charger - Programmable charging current up to 1.1A Fast Charge - SilTerra 0.18um

This USB/AC Li-Ion battery charger is targeted for portable applications.

Contact Provider Request Datasheet
Silterra 180nm G View all specifications

Overview

This USB/AC Li-Ion battery charger is targeted for portable applications. The charging current can be adjusted from 60mA up to 1.1A through an external resistor or by digital control. The current provided to the system can also be adjusted up to 1.8A through the same procedure. This IP features a dynamic power management (DPM) which automatically reduces the charging current when the limit current may cause the system to fall.

This IP also had a features bulk voltage control which connects the substrate of the power device correctly in order to prevent damage on the circuit.

Key features

  • Programmable charge current (1.1A to 60mA)
  • Programmable termination voltage (4.35V to 3.3V)
  • 22V tolerant input
  • Under voltage lock-out
  • Power and charging status indicators
  • Integrated Power Device
  • Reverse current limiter
  • Thermal Shutdown
  • Built-in NTC

Block Diagram

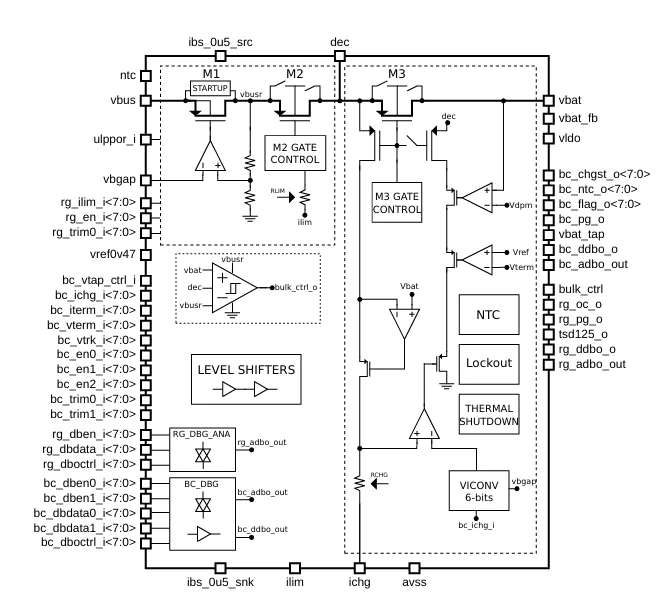

CM1713ff block diagram

Applications

  • Portable electronics devices
  • Home-automation
  • Wireless speaker
  • Portable media players

What’s Included?

  • Datasheet/Integration Guide
  • HDL Model
  • Flat GDSII database/LVS netlist
  • Customer Support

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
Silterra 180nm G —

Specifications

Identity

Part Number
CM1713ff
Vendor
Chipus Microelectronics
Type
Silicon IP

Provider

Chipus Microelectronics
HQ: Brazil
