Linear Li-Ion Battery Charger - ±1% Accuracy (4.2V) / Up to 1.1A Fast Charge SilTerra 0.18um

This USB/AC Li-Ion battery charger is targeted for portable applications.

Contact Provider Request Datasheet
Silterra 180nm G Silicon Proven View all specifications

Overview

This USB/AC Li-Ion battery charger is targeted for portable applications. The full current charge can be set from 100mA to 1.1A. It provides a regulated voltage of 4.2V for powering external loads up to 2.3A in the absence of the battery. The recommended supply input voltage range is 4.5V to 6.9V, however the battery charger can support from 3.3V up to 30V in idle mode.

A reverse current protection is available in order to avoid current flowing from the battery back to the charger when the voltage at Vin is lower than Vbatt ($Vin < Vbatt). An under/over input voltage lock-out sensor and a die over temperature sensor are also available to ensure safe battery charge conditions.

Key features

  • Programmable 0.1–1.1A charge current
  • USB 100mA/500mA compliant
  • Over voltage protection at the input
  • Under voltage lock-out at the input
  • Integrated temperature shutdown
  • Power and charging status pin indicator
  • Integrated power FET and sensing
  • Integrated LDO for external loads
  • 30V tolerant input

Block Diagram

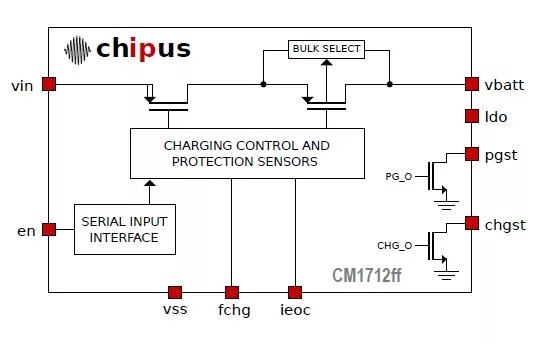

CM1712ff block diagram
