Li-Ion Battery Charger - ±1% Accuracy (4.2V) / Up to 1500mA Fast Charge - Silterra 0.18 um

This macro-cell is a precision linear Li-Ion battery charger core (4.2V, +/-1%) designed for SilTerra CL180GH5 0.18μm CMOS techno…

Contact Provider Request Datasheet
Silterra 180nm G Silicon Proven View all specifications

Overview

This macro-cell is a precision linear Li-Ion battery charger core (4.2V, +/-1%) designed for SilTerra CL180GH5 0.18μm CMOS technology (5V).

The circuit has internal under/over-voltage, current/temperature protections. It includes a built-in NTC circuit with internal bias resistor for the battery thermistor. Charge current is digitally programmable from 100mA to 1500mA. It supports USB and AC adapter and features a backup charger (ML series).

Key features

  • Battery charger for SoC / PMIC
  • Integrated power FET and sensing
  • Charge from AC and USB
  • Built-in NTC
  • Reverse current protection
  • Digitally programmable parameters
  • Indicative area: 1.75mm2

Block Diagram

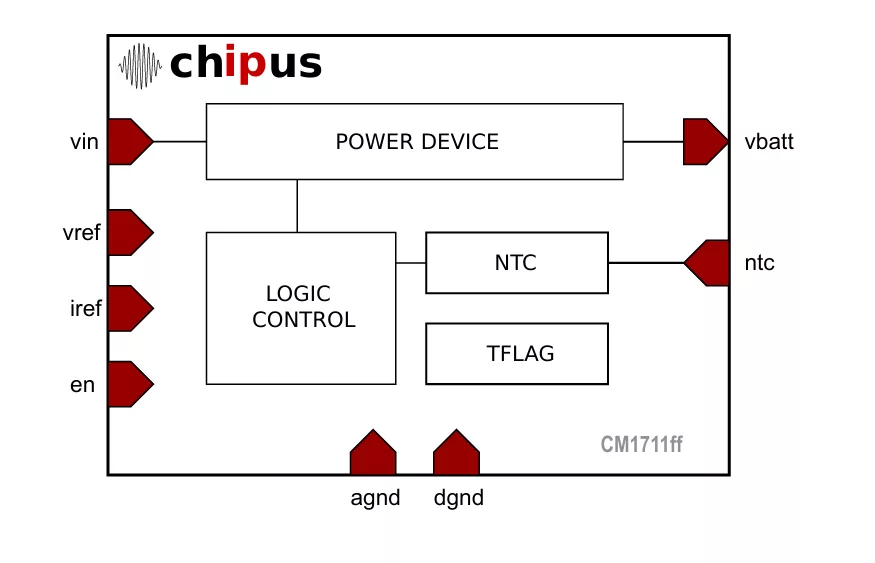

CM1711ff block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
