LDPC Encoder / Decoder

The LDPC Error Correction Core (Alcyone) delivers industry- error correction performance to enable 2D/3D, SLC/MLC/TLC/QLC NAND Fl…

Contact Provider Request Datasheet

Overview

The LDPC Error Correction Core (Alcyone) delivers industry-leading error correction performance to enable 2D/3D, SLC/MLC/TLC/QLC NAND Flash for mobile, client and enterprise SSD controller markets. With YEESTOR's patented low-complexity LDPC architecture, Alcyone solves the area and power consumption problems LDPC designs usually have and enables low-power and cost effective SSD controllers. Alcyone has been production proven for different applications such as USB, eMMC and client/enterprise SSD applications. Alcyone is delivered with a complete development package for the ease of use in both FPGA and SoC design.

Key features

  • Support 1KB+/2KB+/4KB+ codeword size
  • Support configurable throughput
  • Support hard-bit decode (HBD) and soft-bit decode (SBD)
  • LDPC hard decoding and soft decoding can be less than 10^-17 UBER at 4K code length
  • Built-in low power engine
  • Support up to 6bit SBD
  • Support variable code rate for various 2D/3D, SLC/MLC/TLC/QLC NAND Flash
  • Support byte-by-byte adjustment in user data and parity data area of code word
  • Support on-the-fly dynamic code rate swapping
  • Support on-the-fly bit error rate monitoring
  • Support out-of-order decoding
  • Support configurable termination condition
  • Qualified on the vendor development platform for both real NAND Flash and AWGN channel model

Block Diagram

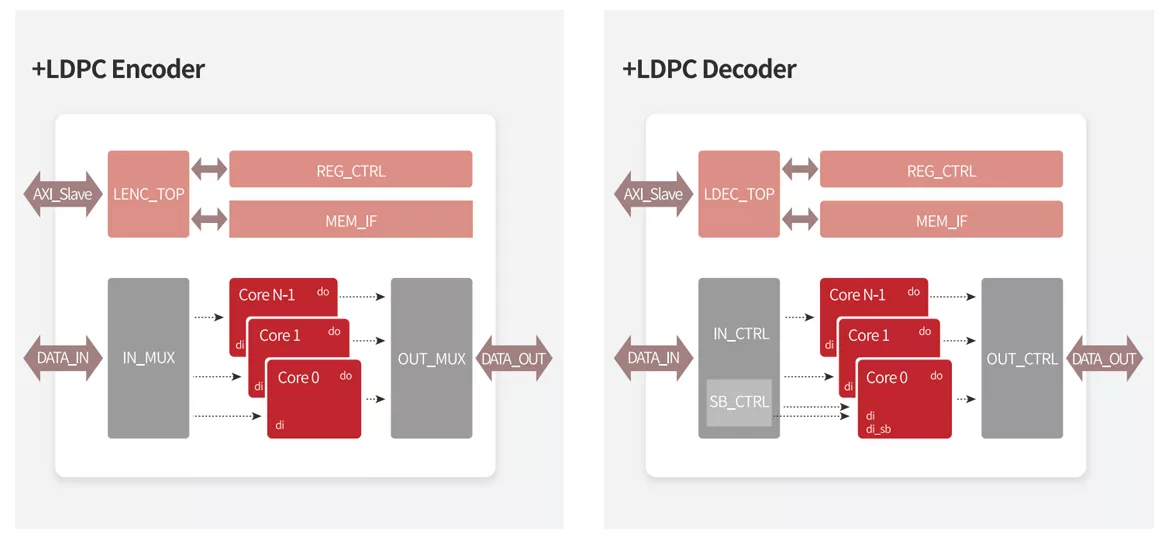

LDPC IP block diagram

What’s Included?

  • RTL code
  • Sanity check RTL simulation environment
  • Synthesis script for ASIC and FPGA
  • LDPC encoding/decoding C library
  • LDPC encoding/decoding matrices
  • NAND Flash LLR LUT calibration utility
  • Documentations
  • Training Course

Specifications

Identity

Part Number
LDPC IP
Vendor
YEESTOR Microelectronics Co., Ltd
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

YEESTOR Microelectronics Co., Ltd
HQ: P.R. China
YEESTOR Microelectronics Co., Ltd was developed by SiliconGo Microelectronics, Inc.. Headquartered in Shenzhen, branching in Taiwan Hsinchu, Hong Kong, Hefei, Guangzhou and Changsha. YEESTOR provides industry customers with one-stop storage solutions including storage controllers, industrial storage modules, IP and design services, and its products cover consumer, enterprise, industrial, and automotive applications. With 14 years of technology accumulation and business expansion, YEESTOR has established a complete storage product line from general storage (USB/SD), embedded storage (UFS/eMMC/SPI-NAND) to SSD storage (SATA/PCIe). Shipped over 1 billion sets. The full-process quality control system, in accordance with the ISO9001 standard, covers from the analysis of storage media characteristics, to the development of storage controllers and their firmware, to the design, packaging, production, testing and after-sales service of various storage modules. YEESTOR has mastered many key technologies in the industry and has obtained 203 authorized invention patents. It owns the core IP of all storage controllers and provides integrated storage and computing solutions to meet the challenges of emerging applications such as AIoT and data centers.
