Integer N PLL for Frequency Synthesis

The ANLBPLL0100 is an integer-N PLL for frequency synthesis that can be used to create a low phase-noise local oscillator (LO) fo…

Contact Provider Request Datasheet
GlobalFoundries 130nm View all specifications

Overview

The ANLBPLL0100 is an integer-N PLL for frequency synthesis that can be used to create a low phase-noise local oscillator (LO) for applications operating in the L band (1 GHz – 2 GHz). The low phase noise results in ultra-low clock jitter for applications which require it. The frequency synthesizer consists of a clock receiver, phase-frequency detector, low-noise charge pump, active loop filter utilizing on-die and off-die components, multi-band LC VCO, and an LO output buffer. The frequency synthesizer uses a 9-bit programmable divider to support integer multiplication factors from 100 to 511.

Key features

  • 1 GHz–2 GHz LO frequency range
  • 5 MHz–20 MHz input clock frequency range
  • 9-bit programmable divider (100-511)
  • 7-band VCO with off-chip resonator
  • Programmable charge pump and loop filter
  • Integrated LDO regulator
  • Lock indicator
  • Process: 130nm GF BiCMOS8HP
  • Area = 2.74mm2 (1.48 mm x 1.85mm)
  • Phase Noise: -120 dBc/Hz @ 1MHz (1.5 GHz)
  • Jitter RMS: 1.2ps (12KHz-20MHz integration BW)
  • Loop bandwidth: 5 KHz-50 KHz
  • Lock time: 1ms

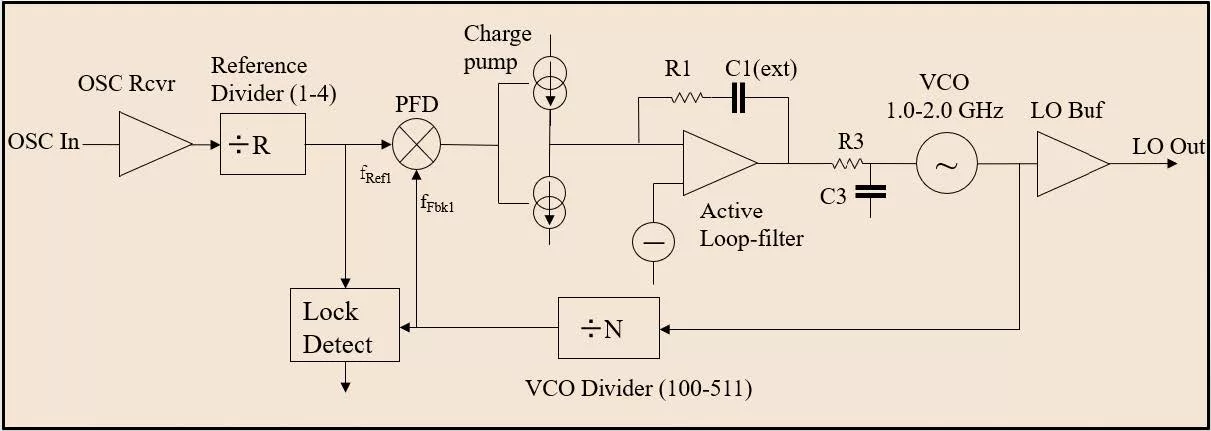

Block Diagram

ANLBPLL0100 block diagram

Benefits

  • Low phase-noise applications

Applications

  • L band applications including:
  • - Satellite navigation (GPS)
  • - Mobile satellite telecommunications
  • - Aircraft surveillance
  • - Digital audio/video broadcasting
  • - Astronomy
  • - Amateur radio
  • General purpose clock synthesis

What’s Included?

  • Specification
  • GDS
  • CDL
  • LEF
  • Verilog model
  • .LIB
  • Application documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 130nm 130 1300 nm —

Specifications

Identity

Part Number
ANLBPLL0100
Vendor
asicNorth
Type
Silicon IP

Provider

asicNorth
HQ: USA
ASIC North is a leading VLSI design service provider specializing in enabling integrated device manufacturers (IDMs) and fabless semiconductor companies. With vast experience in CMOS circuit design, an analog-mixed-signal IP library, ASIC design capabilities and characterization services, ASIC North has the ability to create a broad of range of semiconductor-based solutions.
