Generic timer IP

Up to 1,500 MIPS @ 200 Mhz clock frequency for high data processing speed and precise process control

The Generic Timer IP module (GTM) ensures accurate multi-input data acquisition and multi-output signal generation in automotive powertrain and active safety applications, or in industrial closed-loop applications.

The GTM captures digital input signal changes in real-time. These are used together with digitized analog signals for computation.

The powerful programmability due to its high-level language (C) allows to generate virtually any output signal shape with complex pulsewidth modulation (PWM).

Multiple programming channels can act in parallel, while still ensuring synchronous signal generation.

Technical characteristics

• Enables real-time control loops
• Deterministic multi-threaded architecture (8 threads per RISC unit)
• Programmability (special purpose RISC/ALU)

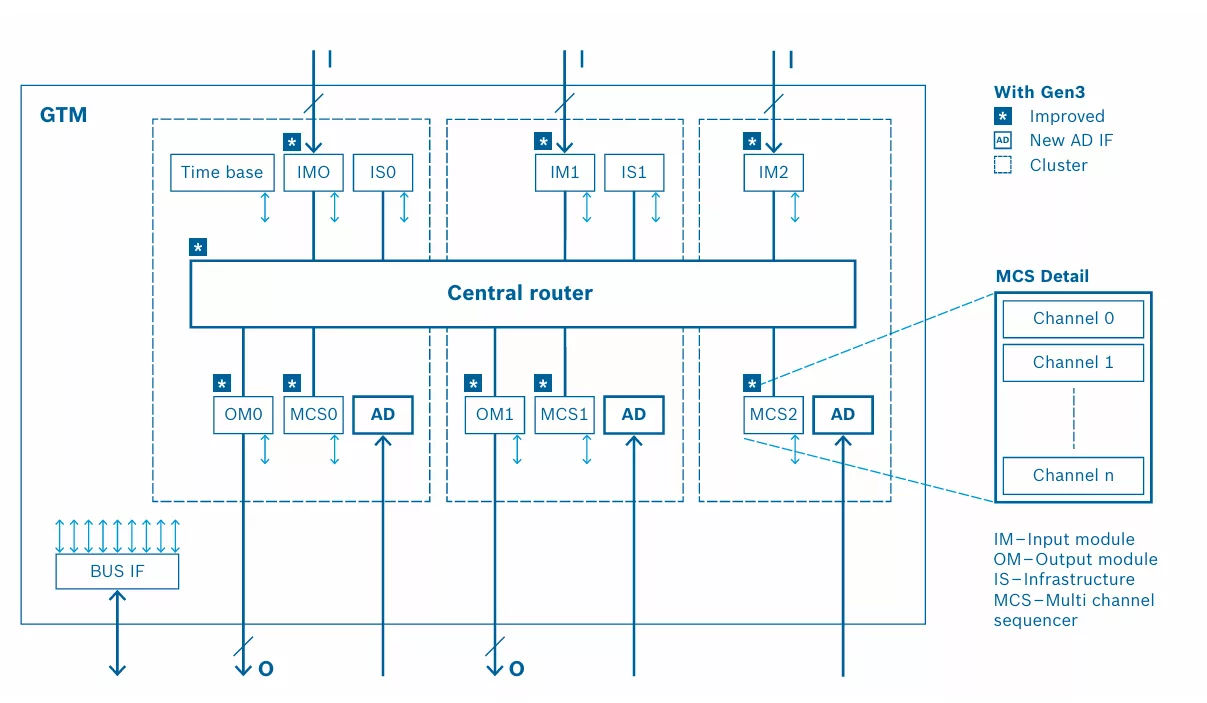

• Scalable and configurable architecture
• Easy integration due to generic interfaces and hierarchical architecture
• SystemC model support for in-system verification and early software development
• Supports model-based development
• 5 ns input and output resolution for high-precision data capturing and data signal generation

• Complex timer IP for various application domains and classes.
• Easy integration due to generic interfaces and hierarchical architecture.
• Scalable and configurable architecture.
• SystemC model support for in-system verification and early software development.

• VHDL source code,
• test environment (test bench and integration tests),
• SystemC executable model for in-system verification and early software development,
• documentation,
• application notes,
• serial communication protocol software drivers
