Fractional-N Frequency Synthesizer (PLL)

The ANFNPLL0100 is a fractional-N frequency synthesizer that can be used to implement local oscillator (LO) in the low power, low…

Contact Provider Request Datasheet
GlobalFoundries 130nm View all specifications

Overview

The ANFNPLL0100 is a fractional-N frequency synthesizer that can be used to implement local oscillator (LO) in the low power, low data rate, wireless applications such as ZigBee, Bluetooth Low Energy (LE). The frequency synthesizer consists of low noise phase frequency detector (PFD), a precision
charge pump, an internal loop filter, and dual band voltage controlled oscillator (VCO). The frequency synthesizer has 5-bit programmable divider
supporting integer multiplication up to 63, and 3rd order sigma-delta modulator supporting 20-bit fractional resolution.

Key features

  • 2.48 GHz Fractional-N Frequency
  • 1.2 V Power Supply
  • Programmable Charge Pump Current
  • Programmable VCO Current Limit
  • Built-in VCO Coarse Tune Calibration
  • 5 Bit Programmable Divider
  • 3rd Order Sigma Delta Modulator supporting 20 Bit Fractional Resolution
  • Integrated Loop Filter
  • Process: 130nm GF CMOS8RF
  • Area = 0.66 mm2 (0.70 mm x 0.95mm)

Block Diagram

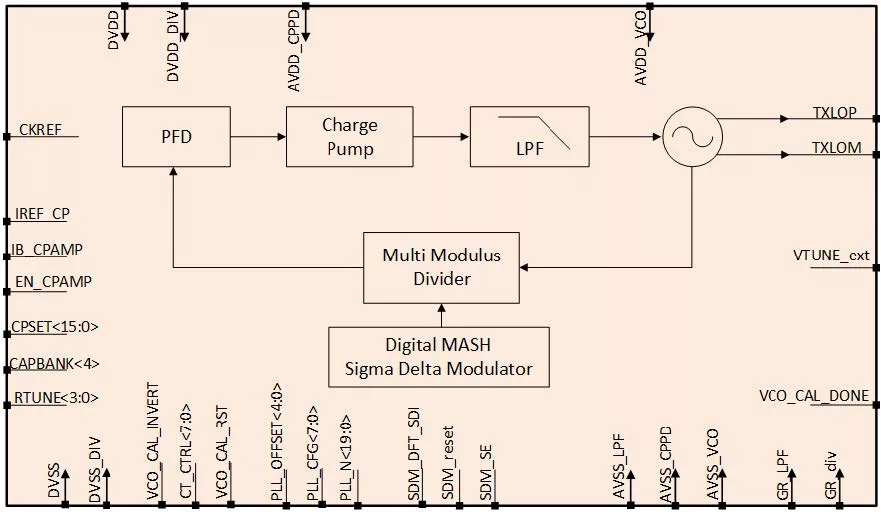

ANFNPLL0100 block diagram

Benefits

  • Phase Noise:
    • -110 dBc/Hz (2.48GHz at 1MHz offset)
  • Lock Time: 5 us
    • TX Frequency Range: 2402 MHz – 2483.5 MHz
    • RX Frequency Range: 1921.6 MHz – 1986.8 MHz

Applications

  • Wireless Application:
  • - Bluetooth LE, ZigBee
  • Wireless Meter Reading
  • Test and Measurement
  • Clock Generation

What’s Included?

  • Specification
  • GDS
  • CDL
  • LEF
  • Verilog Model
  • .LIB

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 130nm 130 1300 nm —

Specifications

Identity

Part Number
ANFNPLL0100
Vendor
asicNorth
Type
Silicon IP

Provider

asicNorth
HQ: USA
