FlexCAN Controller for CAN 2.0 with CAN-FD

The FlexCAN controller is a configurable, synthesizable core implementing the CAN protocol (ISO 11898-1), CAN with Flexible Data …

Contact Provider Request Datasheet

Overview

The FlexCAN controller is a highly configurable, synthesizable core implementing the CAN protocol (ISO 11898-1), CAN with Flexible Data rate (CAN FD), and CAN 2.0 B protocol specifications, built from silicon-proven technology.

Key features

  • Full implementation of CAN FD and CAN 2.0 B
    • Standard/extended data frames
    • Up to 8Mbit/s
    • 0-64 bytes data length
  • Compliant with ISO 11898-1
  • Flexible mailboxes configurable
    • To store 0-8, 16, 32, or 64 data bytes
    • As receive or transmit
  • Individual Rx mask register per mailbox
  • Full featured Rx FIFO, stores up to 6 frames
  • Transmission abort capability
  • Listen-only mode
  • Loop-back mode supporting self-test operation
  • Programmable transmission priority scheme
  • Time stamp based on 16-bit free-running timer with an optional external time tick
  • Low power modes with programmable wake-up on bus activity or matching with received frames (pretended networking)
  • Transceiver delay compensation for CAN FD Tx at faster data rates
  • Detection and correction of memory read (ECC)
  • SystemVerilog integration testbench including a number of usage scenarios

Block Diagram

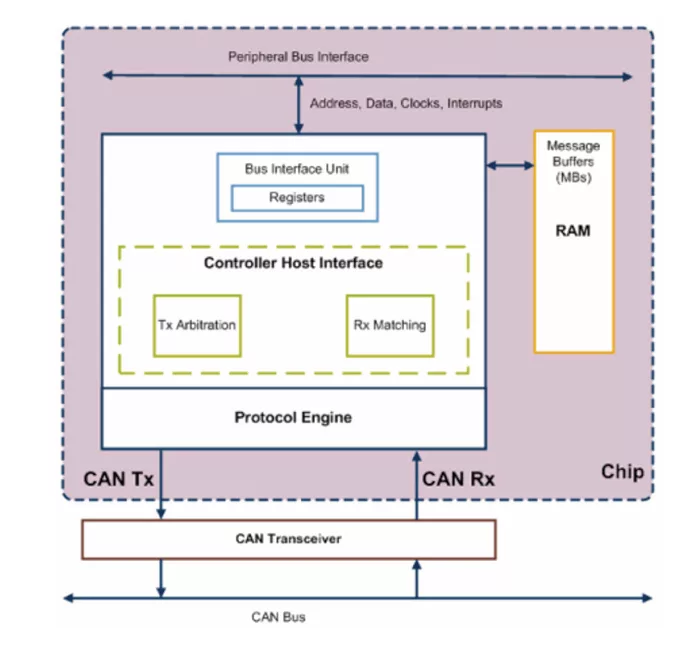

FlexCAN with CAN-FD Controller block diagram

What’s Included?

  • Verilog RTL source code
  • Test bench with test suites
  • Documentation including User's Guide and Integration Guide
